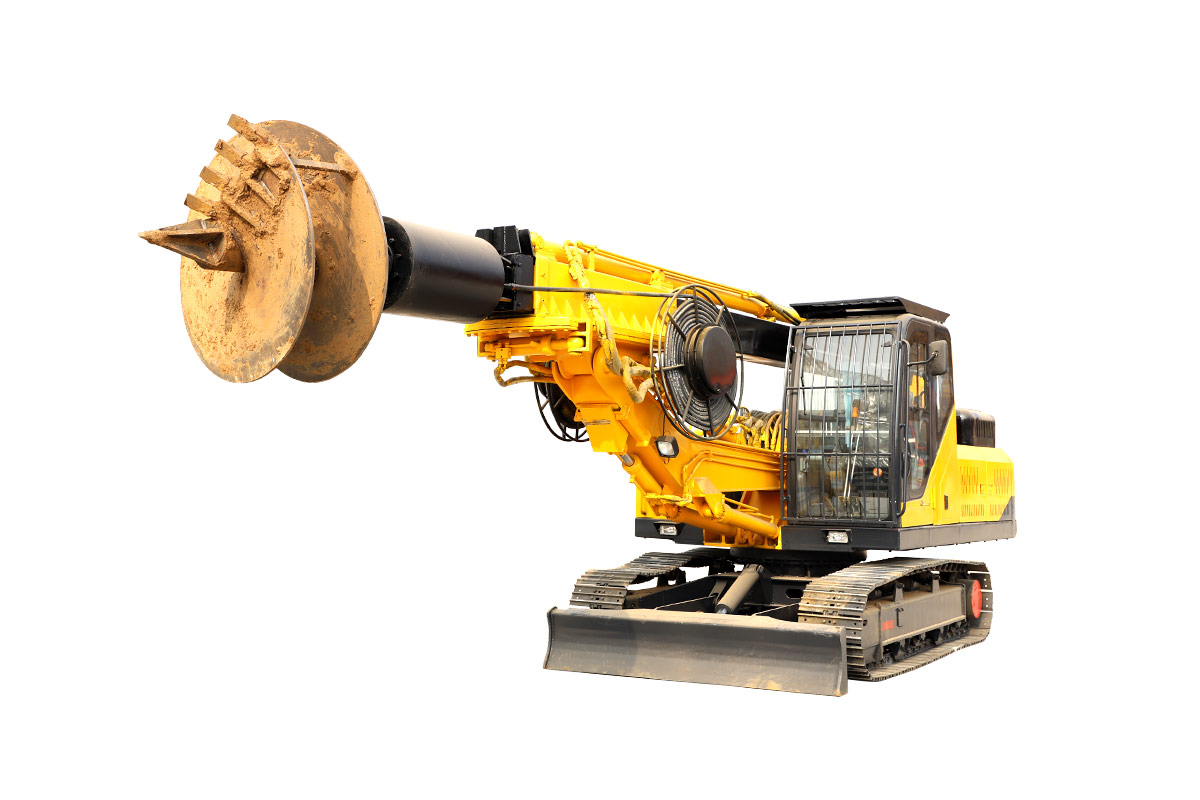

Crawler Rotary Pile Driver

Factory Direct
Training on Arrival
One-year warranty
Drilling Depth: 15m
Drilling Diameter: 1200mm
Rated Power: 86Kw
Product Detail

The machine lock bar rotary drilling rig uses hydraulic crawler-type telescopic chassis, self-lifting and folding collapsible drilling mast, telescopic drilling rod and many other technical applications. It is a construction machine suitable for hole formation in building foundation engineering. Mainly suitable for the construction of soil layers such as sandy soil, cohesive soil, silty soil, etc., it is widely used in various foundation constructions such as cast-in-situ piles, continuous walls, and foundation reinforcement.

Compared with ordinary rotary drilling rigs, machine-locked rod rotary drilling rigs have many objective advantages, such as the ability to drill through special grounds such as cement ground, hard sandy soil layers, and rock layers. It is suitable for large-scale engineering construction, buildings, high-speed, high-speed rail 3. Railway engineering construction. The machine construction runs fast, has high efficiency, good drilling quality, and is fuel-efficient and durable.

Parameters/Model

HWDR150

Outsize

Working Size
(length×Width×Height)

m

5.9×2.3×10.5

Transport Size
(length×Width×Height)

m

8.2×2.3×3.25

Machine Weight

t

17

Max Drilling Diameter

mm

1200

Max Drilling Depth

m

15

Engine

Brand

Yuchai

Model

4A115Z

Rated Power

kw/rpm

86/2400

Hydraulic Flow

Working Pressure

Main Pump

Mpa

30

Secondary Pump

Mpa

/

Max Flow

Main Pump

L/min

2×63

Secondary Pump

L/min

/

Power Head

Maximum Torque

Kn.m

60

Rotating Speed

rpm

5-90

Maximum Throwing Speed

rpm

90
