Air leg rock drill is a kind of high efficiency machine.
It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility.
It is suitable for drill level or gradient holes in medium hard or hard rock (f=8-18).

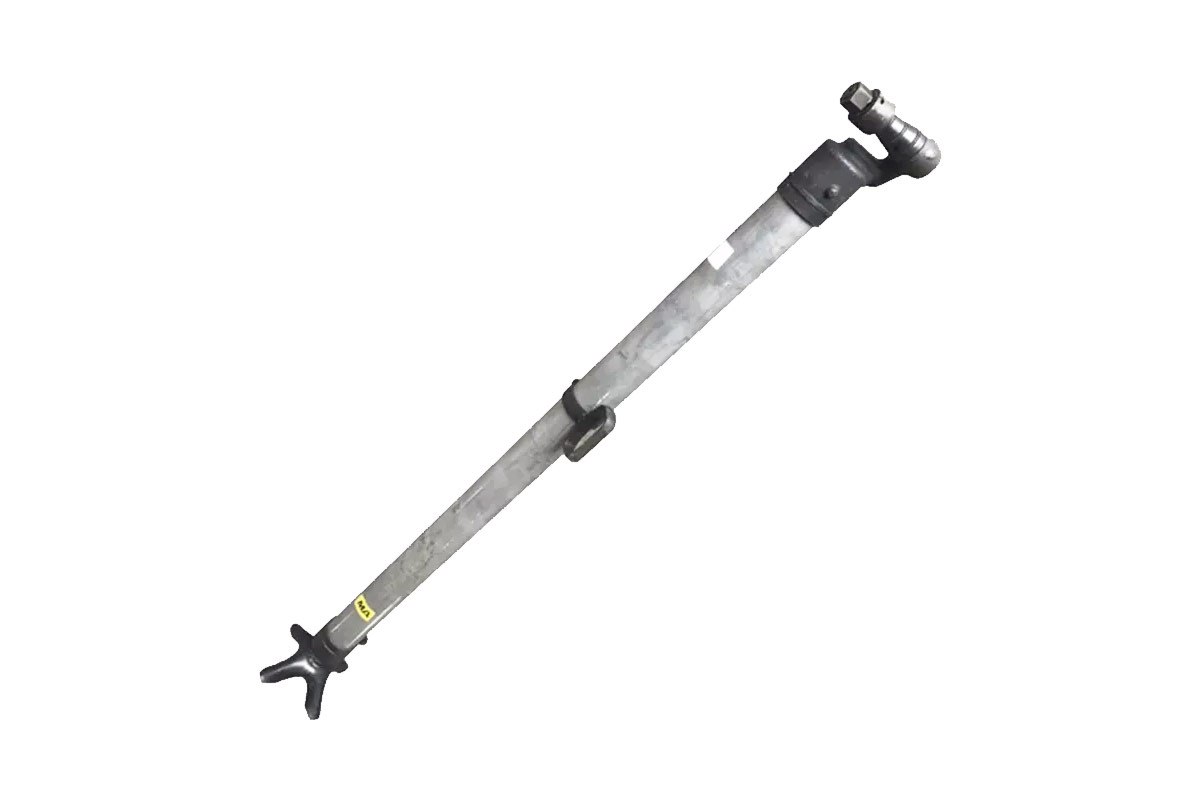

The drilling depth can be five-eight meters. It can be matched with the FT140BD short air-leg or FT140B long air-leg to use in the basis of the width of rock.
Also it can be fixed on drilling-vehicle or drilling-shelf.
To ensure the well lubricating. This rock drill may match FY200B oil reservoir.
NW. (kg) | Max. Length (mm) | Rock drill model | |||
FT160A | 17 | 1688 | 3006 | 65 | 7655, 7655D, YT27, YT29 |
FT160B | 16 | 1428 | 2526 | 65 | 7655, 7655D, YT27, YT29 |
FT160C | 18 | 1820 | 3310 | 65 | 7655, 7655D, YT27, YT29 |
FT160BC | 16.9 | 1365 | 3165 | 65 | YT28 |
FT160BD | 14.4 | 1400 | 2365 | 65 | YT28 |
FT170 | 18 | 1668 | 3006 | 67 | 7655, 7655D, YT27, YT29 |
FT100 | 12 | 1340 | 2340 | 56 | Y19A |
FT100A | 12 | 1340 | 2340 | 56 | YL18 |
FT140B | 15 | 1660 | 2910 | 60 | YT24 |
