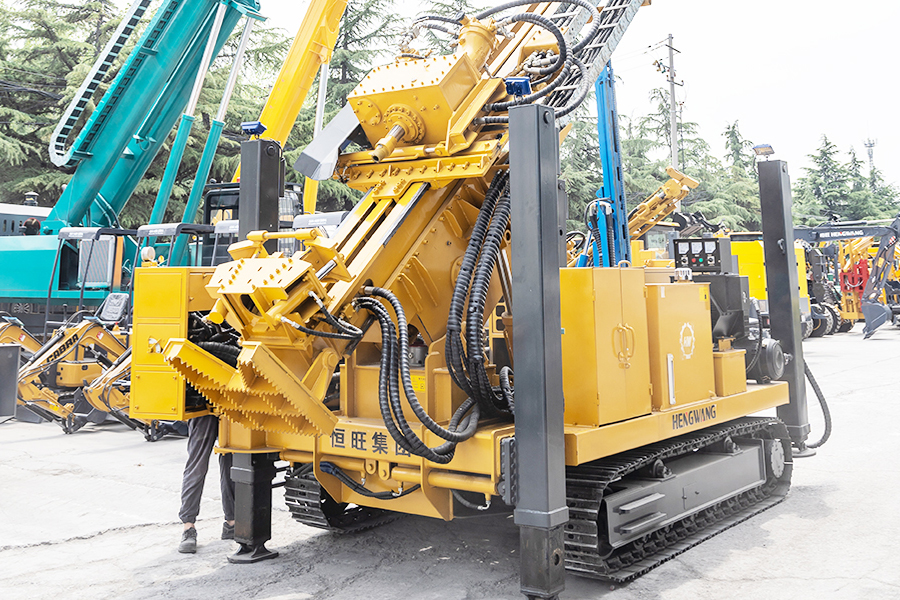

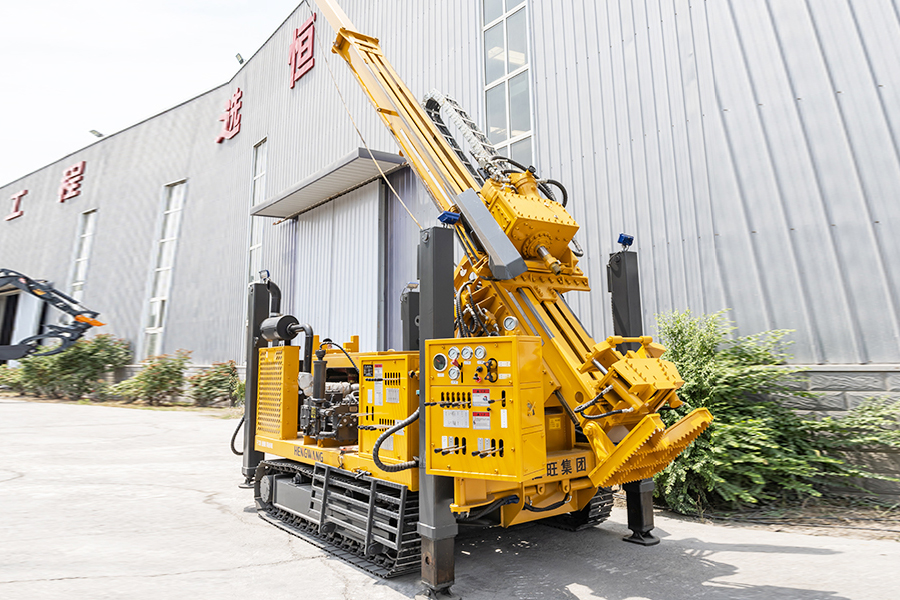

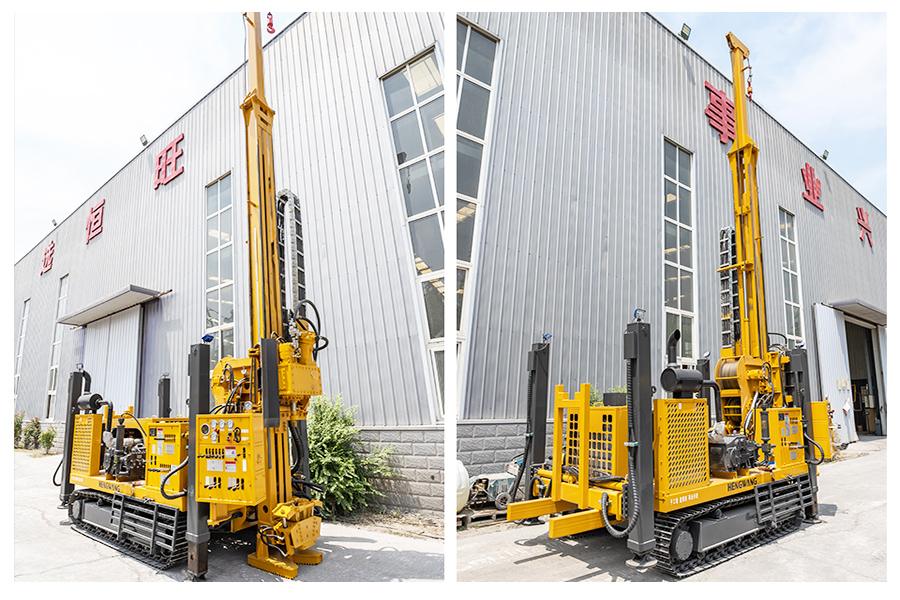

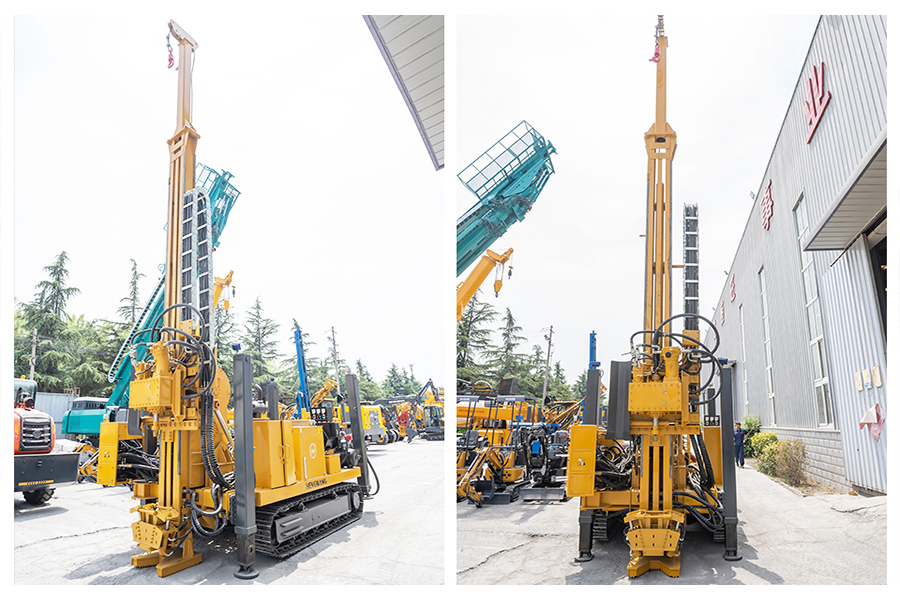

Discover the power and precision of the HW-1500GL Fully Hydraulic Wireline Core Drilling Rig. Engineered for ultimate performance, this rig
takes on the most challenging terrains with ease, delivering superior core samples every time. The HW-1500GL's advanced hydraulic system
provides unmatched control and efficiency, allowing for deeper drilling at faster speeds without compromising on safety or stability. Its cutting-edge
wireline technology ensures quick and easy core retrieval, reducing operational downtime and maximizing productivity. Built with a robust frame
and high-quality components, the HW-1500GL is designed to withstand extreme conditions, ensuring reliability and longevity on every project.
Elevate your drilling operations with the HW-1500GL—a machine that combines strength, accuracy, and innovation to achieve outstanding results.
| model | HW-YDX-1500GL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 750-1500-2000(M) |
| Hydraulic system | |
| preset pressure | 28(MPA) |
| Rated flow | 350(L/nin) |
| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Weichai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 150（KW） |
| Power head | |
| Maximum torque | 1000-3500(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 3500(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 20(T) |
| Feeding force | 10(T) |
| Winch | |
| Lifting force | 1000(KG) |
| Rotary speed | 100-300(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 1500(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 3.5(KM/H) |
| Single machine climbing angle | 45(°) |

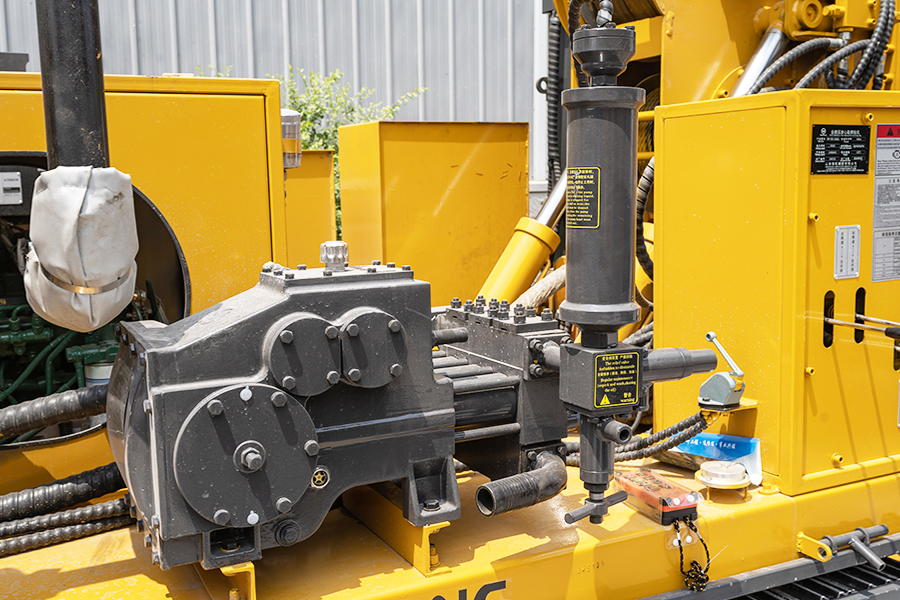

| hydraulic mud pump | |
| mud pump | Contains Bw-250 mud pump |
| flow | 0-250(L/in) |
| pressure | 0-7(MPA) |
| Shipping dimensions | 6000*2100*2400(MM) |
| Total Weight | 10.5(T) |
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
Fill in the form to get the latest product parameters and the lowest price.
