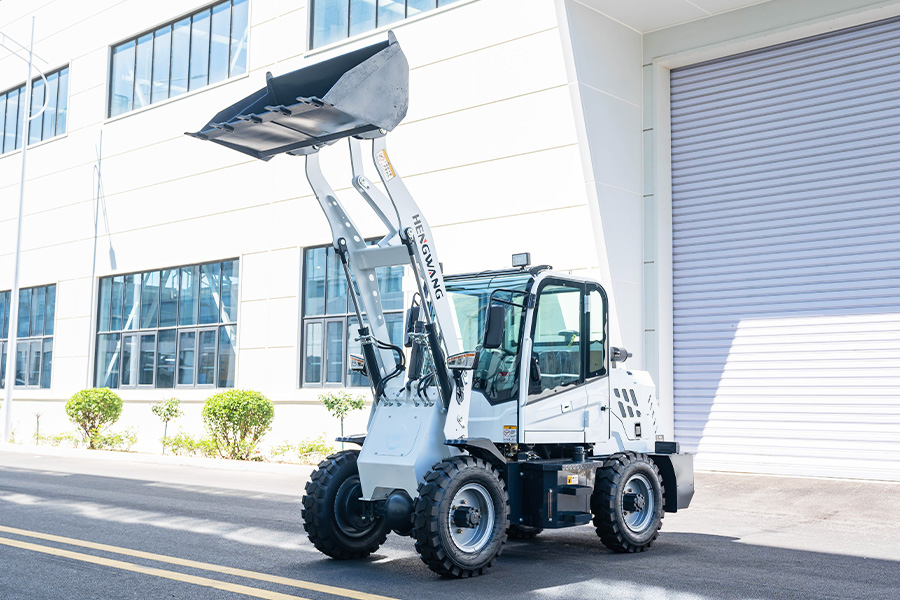

1. Large rising power, High level unloading, automatic leveling, and the working device has a short action time, which improves the efficiency of the whole machine.
2. Air-over-oil assist brake system, caliper disc brake.
3. Split type hydraulic torque converter, not easy to high temperature, easy maintenance.
4. The forward-leaning front frame has long unloading distance and large lifting weight. Electronic flameout, automatic power off, no switch.

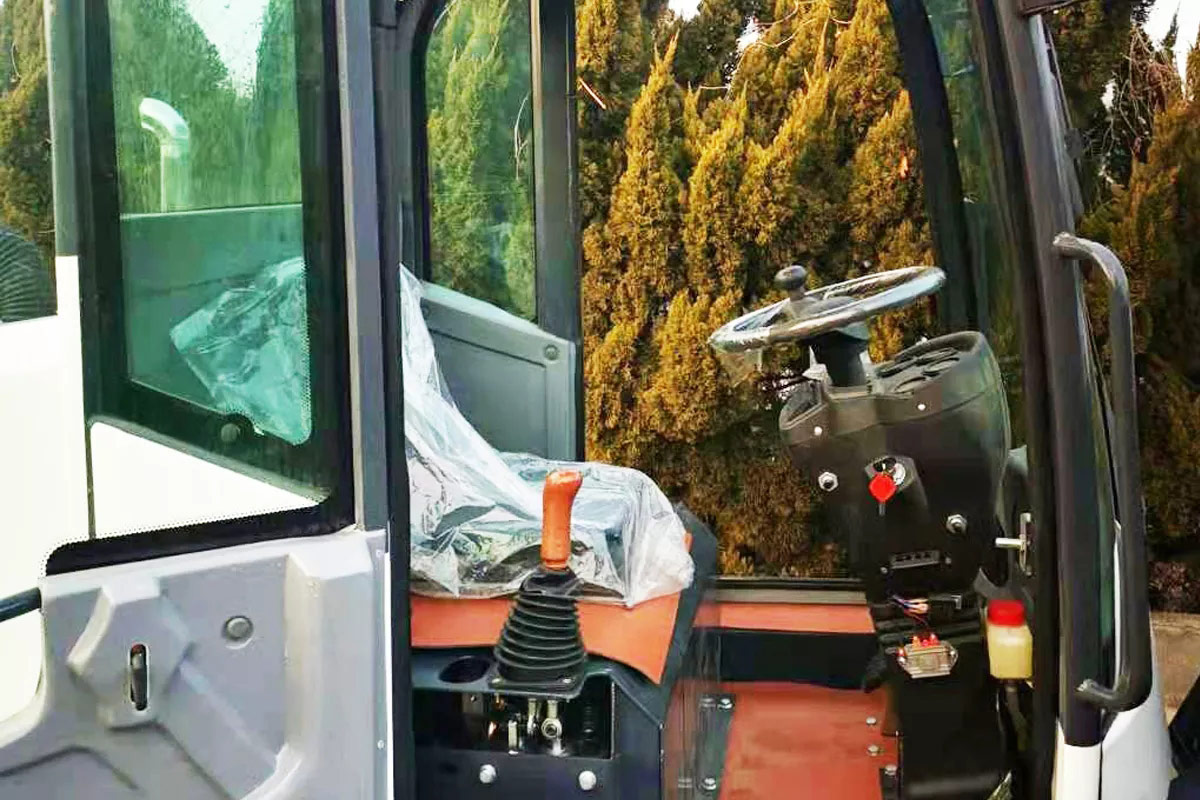

5. The pilot valve is hydraulically operated, and air conditioning is optional.

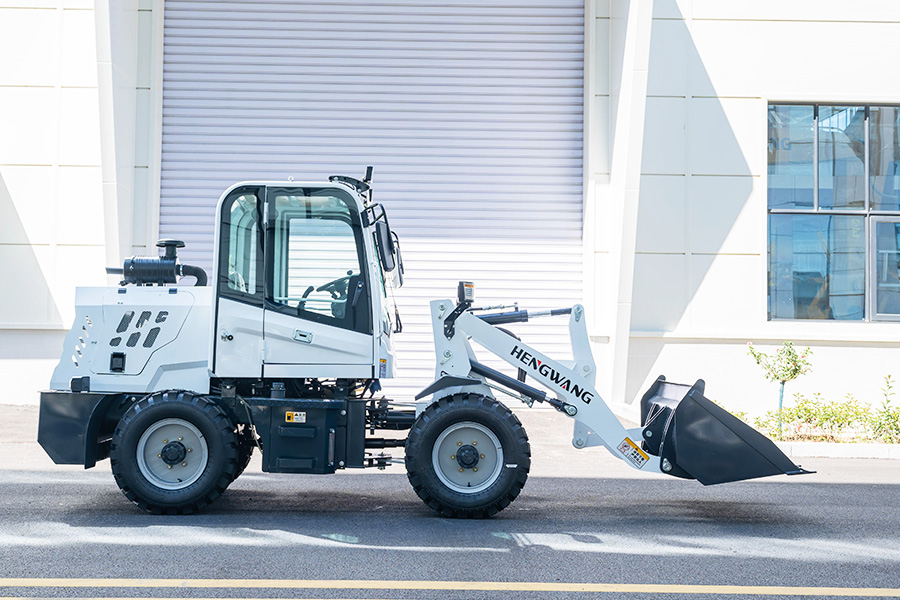

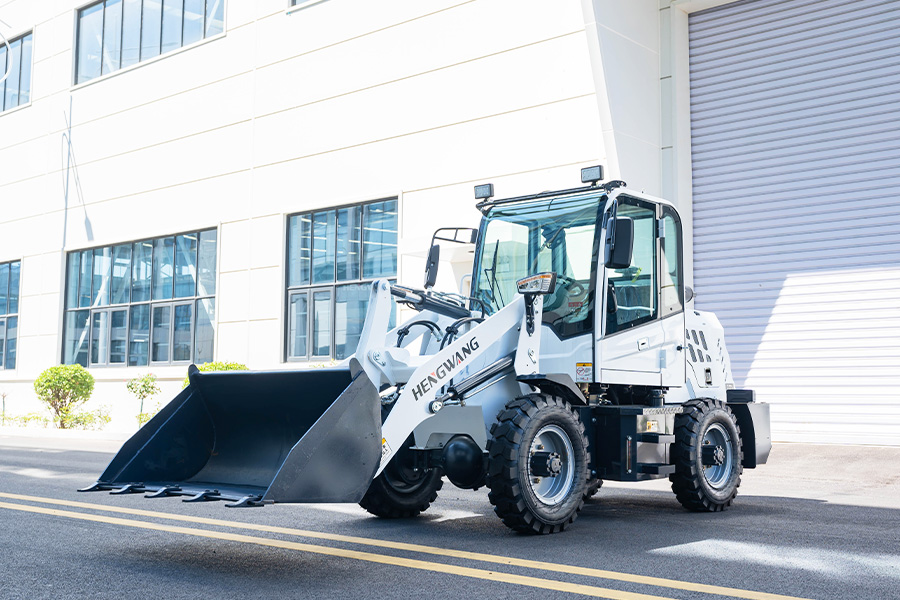

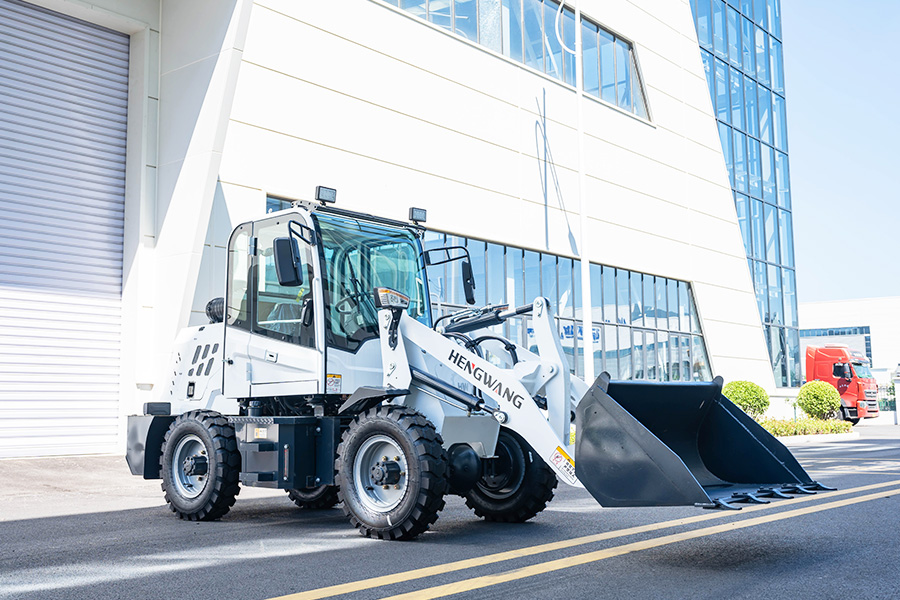

Model | ZL918 |
Rated load (Ton) | 0.8 |
Engine model | Quandongchai 490 |
Rated power (Kw) | 38 |
Max. discharging height (mm) | 2400 |
Max.lifting height (mm) | 2800 |
Bucket width (mm) | 1300 |
Rated bucket capacity (m³) | 0.5 |
Tyre model | 750-16 |
Overall dimension (mm) | 4430*1300*2200 |
Brake system | Oil brake |
