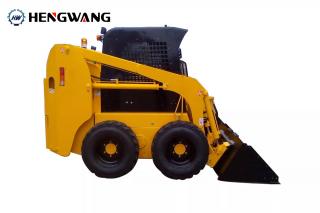

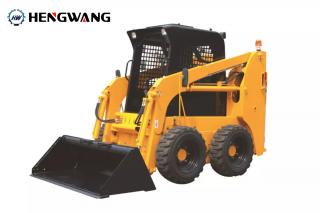

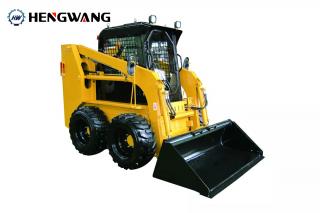

V series Skid Steer Loader
V series Skid Steer Loader
V series Skid Steer Loader
V series Skid Steer Loader

Operating Load: 1200-1500Kg

Bucket Capacity: 0.5-0.55cbm
Rated Power: 74-103kw

Watch Product Video
  • product details
  • Technical parameters

V series Skid Steer Loader

●The V series is a vertical lifting model. The product adopts the internationally popular front pull rod and rear rocker arm leveling design to ensure that the working arm is always vertical when rising and falling.

●This series adopts high-power diesel engine with strong power. The strong integral working arm is equipped with a large oil cylinder, and the maximum lifting force is more than 3000kg. The maximum working flow can reach 140 liters/min.

Model HW100V HW120V
Operating load (kg) 1200 1500
Max Speed(km/h) 12 0.67
Rated flux (L/min) 75 75
High Flow Flux (L/min) 120 140
Tire(track) model 12-16.5 12-16.5
Rated power (Kw) 74 103
Fuel tank capacity (L) 100 100
self weight bucket (kg) 4500 4600
Bucket capacity (m3) 0.5 0.55
Overall operating height (mm) 4250 4250
Height to bucket hinge pin (mm) 3250 3250
height to top of cab (mm) 2160 2160
Height to bottom of level bucket(mm) 3083 3083
Overall length ithout bucket(mm) 3100 3100
overall length with bucket(mm) 3800 3800
Dumping angle at maximum height(° ) 40 40
Dumping height(mm) 2500 2500
Dumping reach(mm) 750 750
Rollback o bucket on ground(° ) 25 25
Rollback of bucket at full height(° ) 124 124
Wheelbase(mm) 1115 1115
Ground clearance(mm) 210 210
Angleof departure(° ) 20 20
Front turning radins without bucket(mm) 1250 1250
Front tuning radius(mm) 2112 2112
Rear tuning radius(mm) 1992 1992
Rear axle to bumper (mm) 1302 1302
Tread width,enterline to centerline (mm) 1500 1500
Width (mm) 1880 1880
Bucket width (mm) 2030 2030
