Operating cost
● The proprietary match technology can achieve high operating efficiency and reasonable fuel economy.
● The configuration of brand core parts achieves high quality and reliability and reduces the malfunction downtime.
Working performance
● The high-strength three-point swing M frame for front wheels guarantees the uniform compacting on rugged ground.
● The special tires for construction machinery feature good wear resistance and long life.
● The hydraulic drive and the stepless speed regulation achieve comfortable and efficient operations, avoid the material accumulation due to sudden acceleration and deceleration, and guarantee high compacting evenness.
● The four-stage brake features short braking distance and high safety and meets the needs under diversified working conditions.

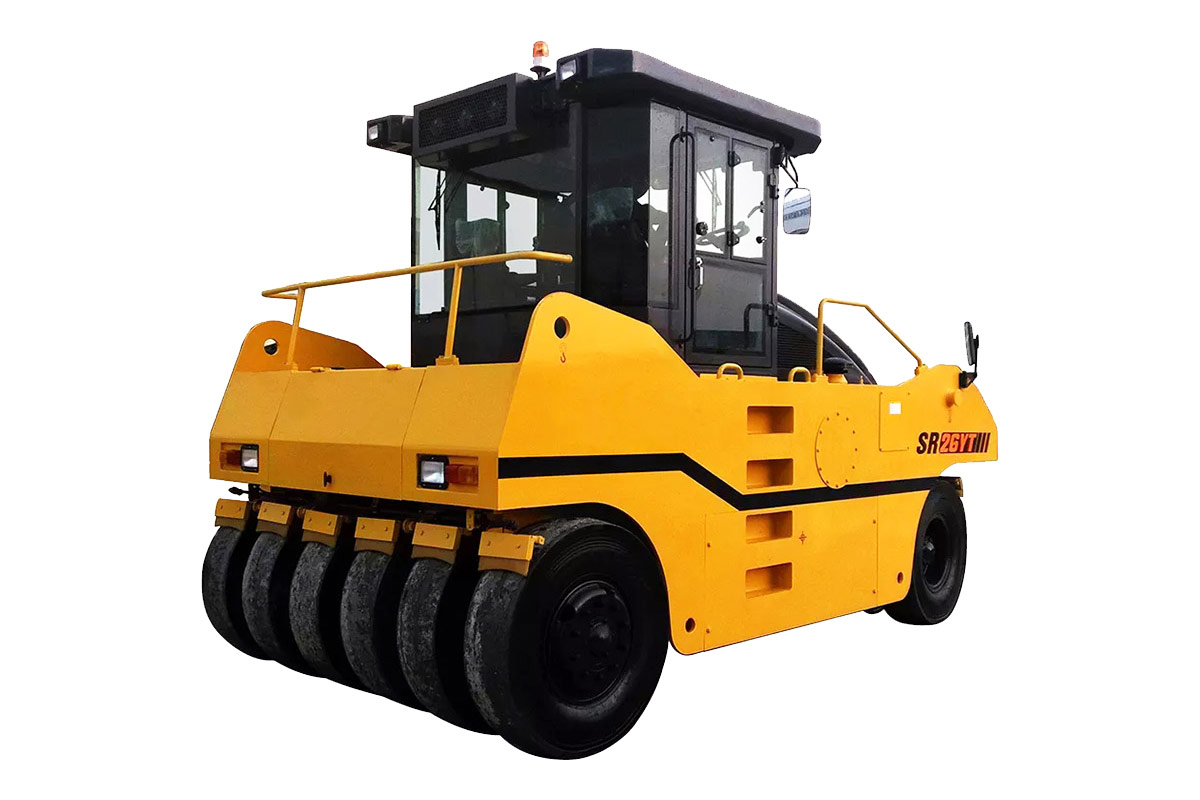

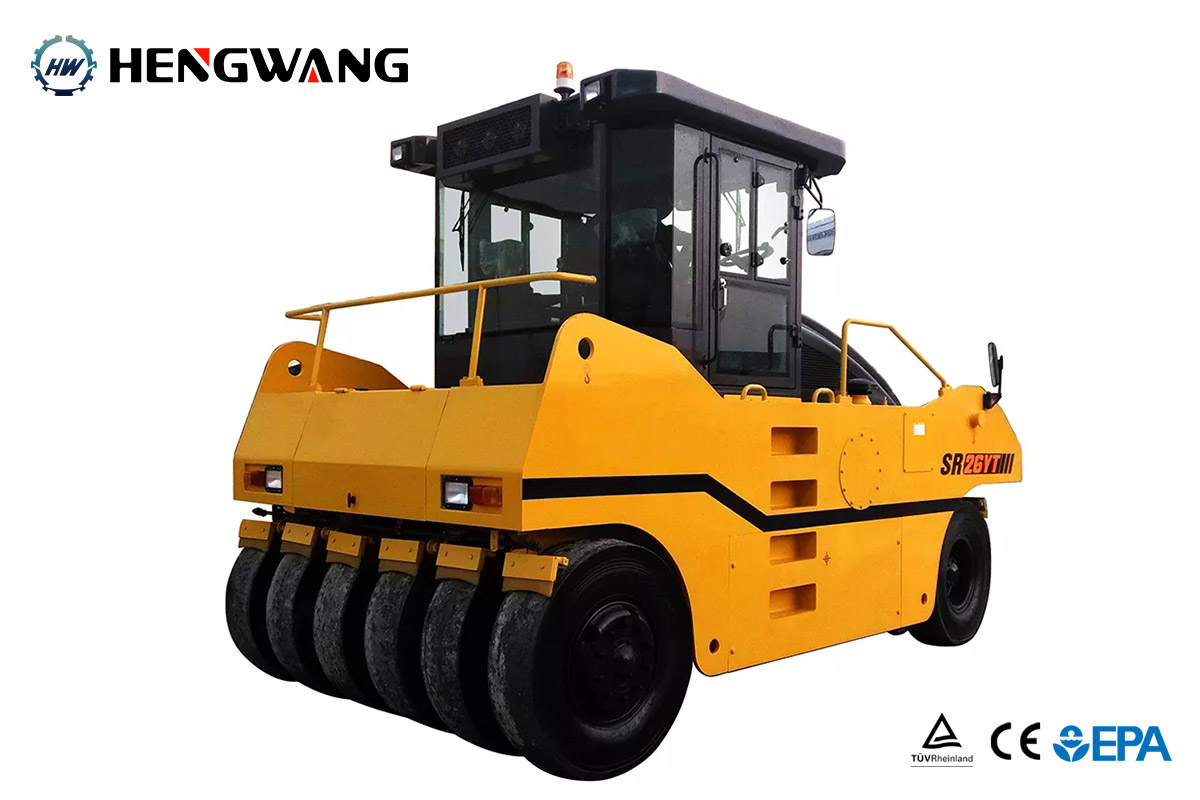

Parameter name | HW26YT |
Operating weight (Kg) | 26000 |
Ground pressure (KPa) | 200-420 |
Gradeability (%) | 20 |
Engine model | SC7H |
Rated power/rated speed (kW/rpm) | 118/2000 |
Overall dimensions of machine (mm) | 5060*2892*3338 |
Forward speed (km/h) | F1:0-7,F2:0-14 |
Reversing speed (km/h) | R1:0-7,R2:0-14 |
Wheelbase (mm) | 3840 |
Fuel tank (L) | 180 |
Compacting width (mm) | 2750 |
