Parameter name | HW18M-2 |
Operating weight (Kg) | 18000 |
Exciting force (KN) | 350/175 |
Vibration frequency (Hz) | 30/30 |
Nominal amplitude (mm) | 2.0/1.0 |
Gradeability (%) | 30 |
Engine model | 6BTA5.9-C155 |
Rated power/rated speed (kW/rpm) | 114/2000 |
Overall dimensions of machine (mm) | 5990*2370*3215 |
Forward speed (km/h) | F1: 2.1,F2: 4.1,F3: 8.8 |
Reversing speed (km/h) | R1:2.1,R2:4.1 |
Fuel tank (L) | 295 |
Compacting width (mm) | 2140 |

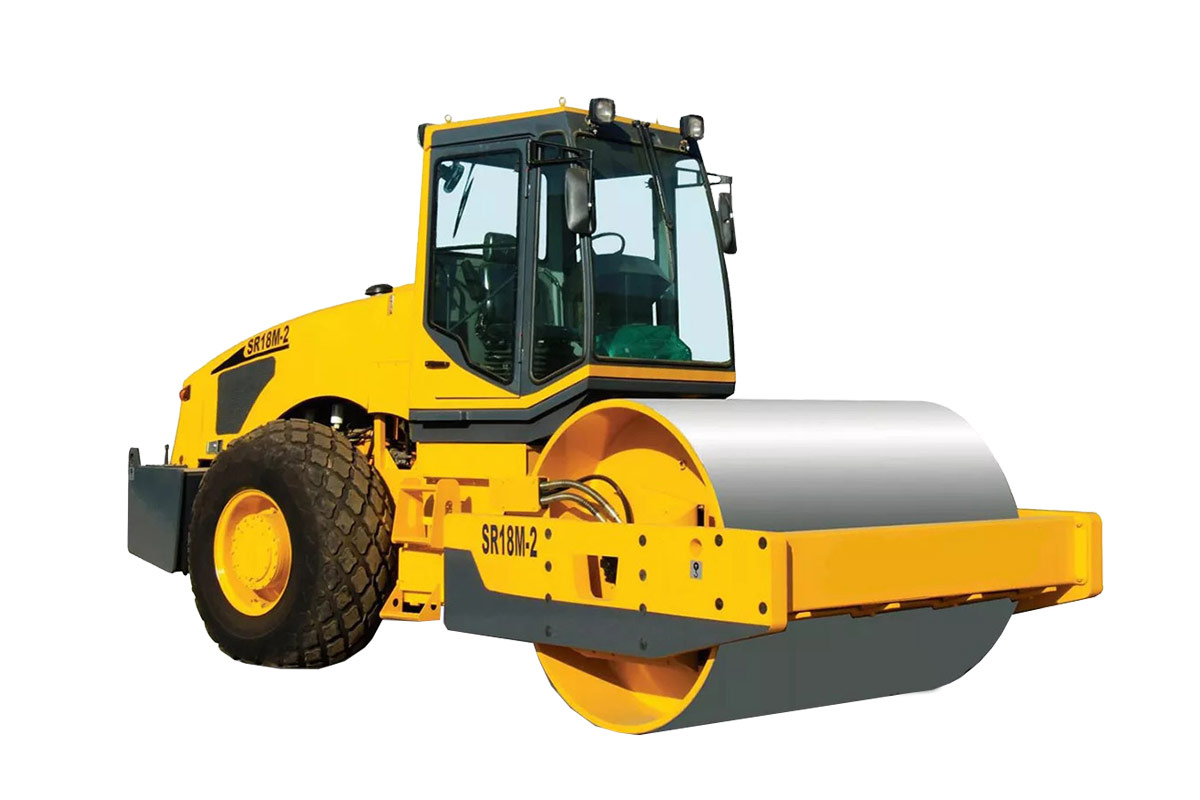

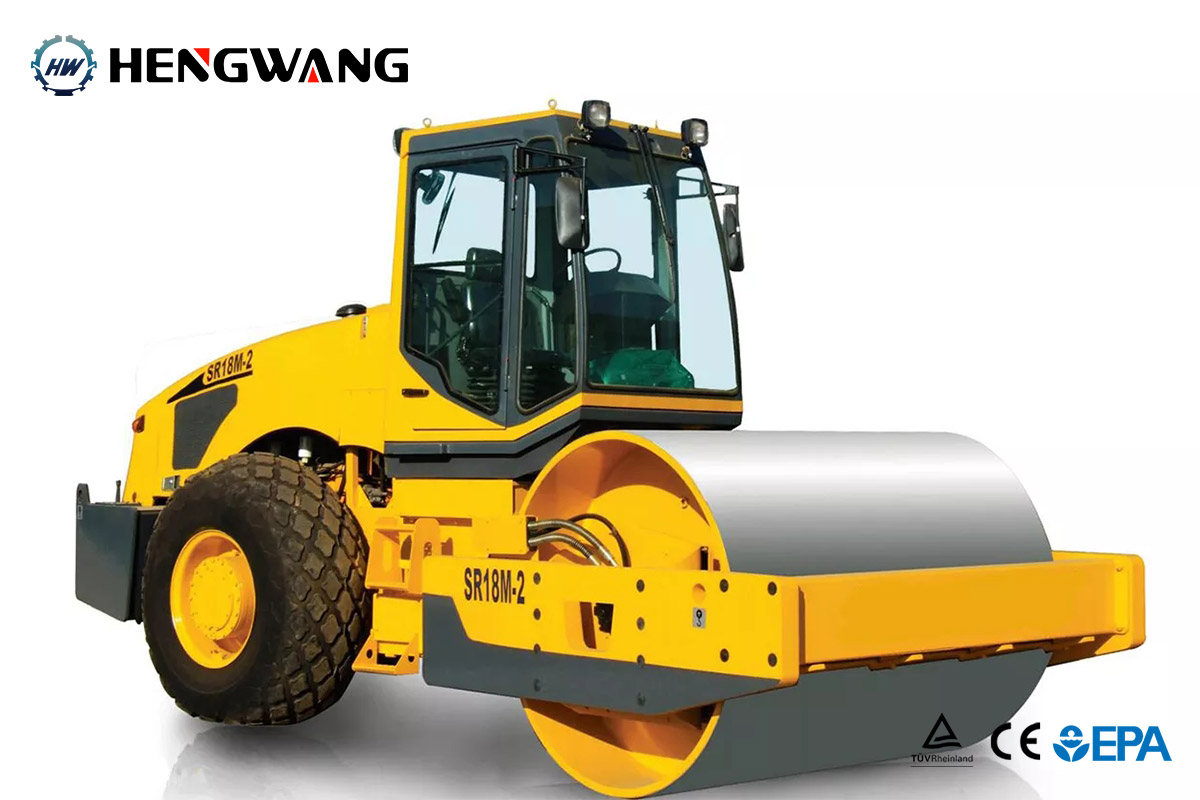

The SR18M-2 is specially enhanced for the most challenging tasks, featuring upgraded ball bearings, gearbox, and a Cummins 6BT5.9-C155 engine.
1. Weighing in at 18 tons, the SR18M-2 is a heavy mechanical vibratory roller that utilizes its weight and dual-frequency double-amplitude hydraulic vibration to tackle demanding jobs.
2. Equipped with substantial weight and power, the SR18M-2 offers a fully enclosed cab with optional AC, an ergonomic control system, a suspension seat, and hydraulically articulated steering.
3. The SR18M-2 provides great comfort for large-scale projects.
4. By adding 154-knob 95 mm "sheep's foot" rollers to the SR18M-2, the 18.5-ton SR18MP-2 is prepared to handle the toughest roadwork scenarios.
