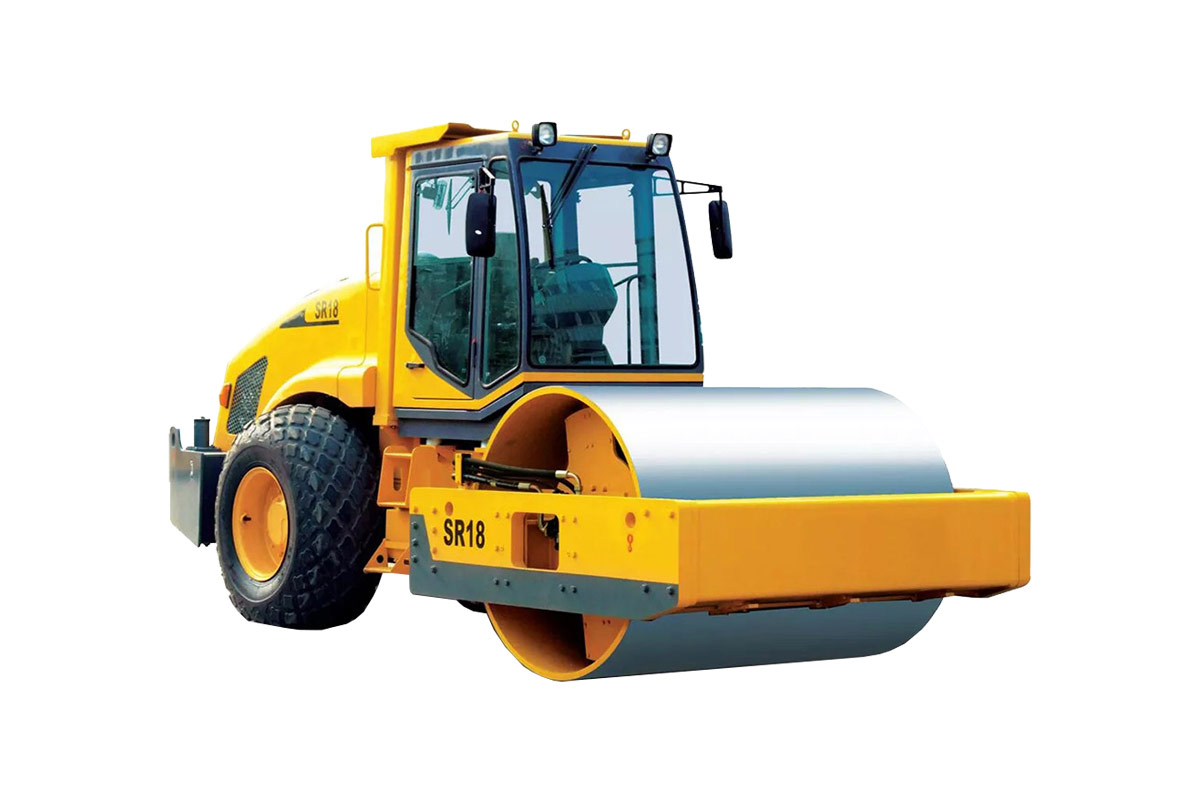

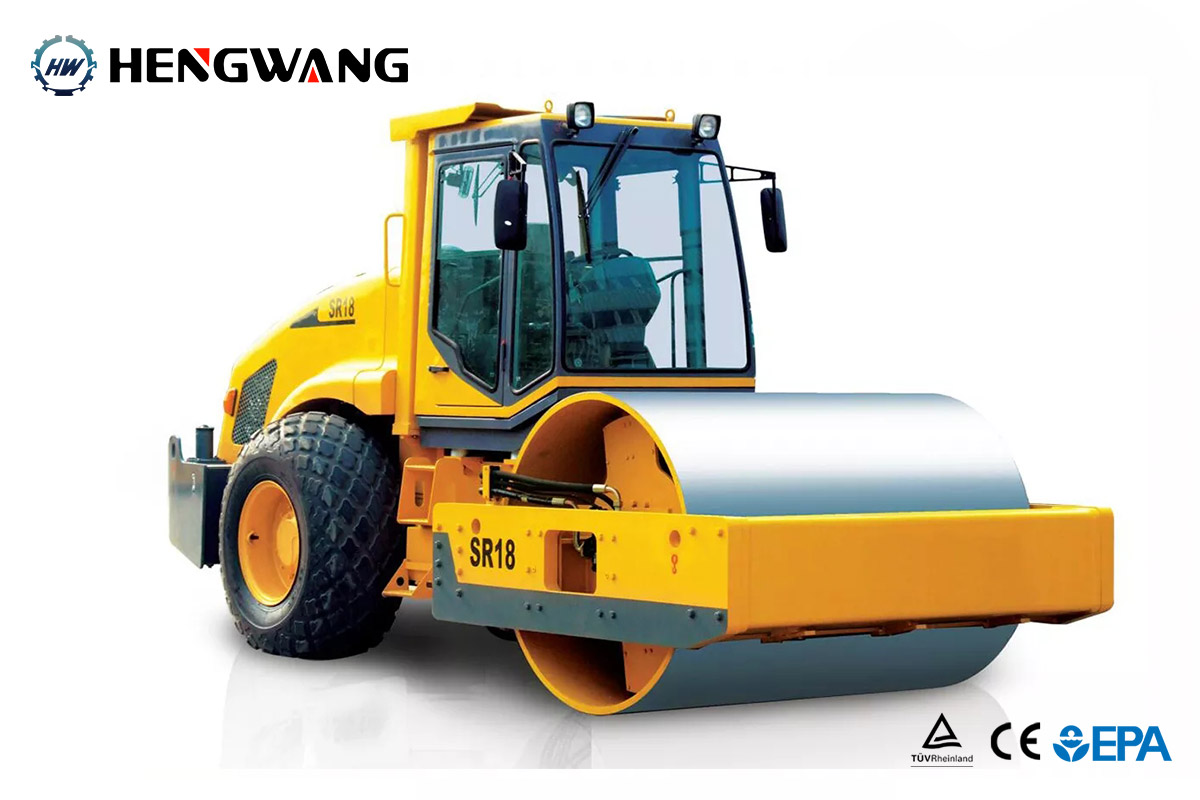

The SR18 is a robust, fully hydraulic vibratory roller designed for heavy-duty tasks, weighing over 18.0 tons. Its substantial weight, combined with powerful vibration force, ensures efficient completion of challenging jobs.
Equipped with a fully enclosed cab, operators have the option of adding air conditioning for enhanced comfort. The roller features an ergonomic control system, a suspension seat, and hydraulically articulated steering, providing optimal maneuverability.
The SR18 is powered by a reliable Cummins 6BT5.9 engine, further contributing to its exceptional performance.
Parameter name | HW18 |
Operating weight (Kg) | 18000 |
Exciting force (KN) | 350/250 |
Vibration frequency (Hz) | 29/35 |
Nominal amplitude (mm) | 2/1.0 |
Gradeability (%) | 45 |
Engine model | 6BTA5.9-C180 |
Rated power/rated speed (kW/rpm) | 132/2500 |
Overall dimensions of machine (mm) | 6093*2410*3132 |
Forward speed (km/h) | F1: 0~5.6 ,F2: 0~7.1 ,F3: 0~8.7 ,F4: 0~13.5 |
Reversing speed (km/h) | R1: 0~5.6 ,R2: 0~7.1 ,R3: 0~8.7 ,R4: 0~13.5 |
Fuel tank (L) | 265 |
Compacting width (mm) | 2140 |
