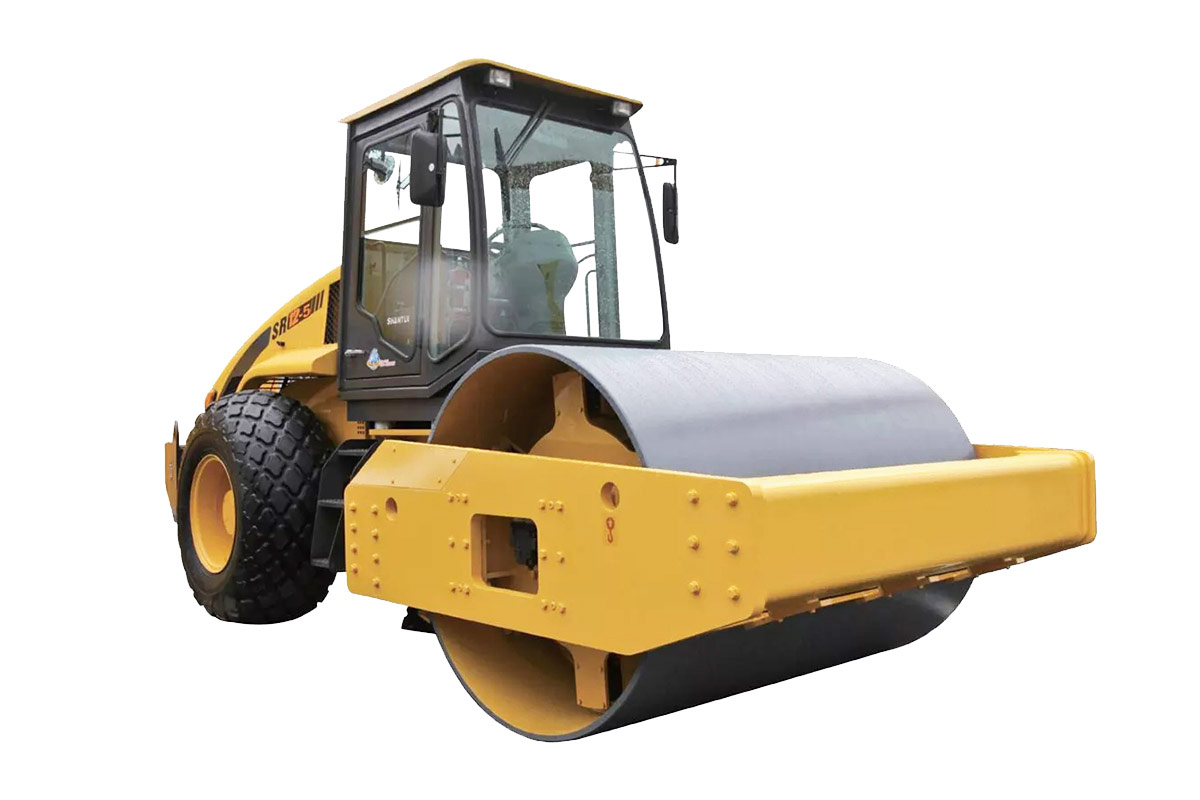

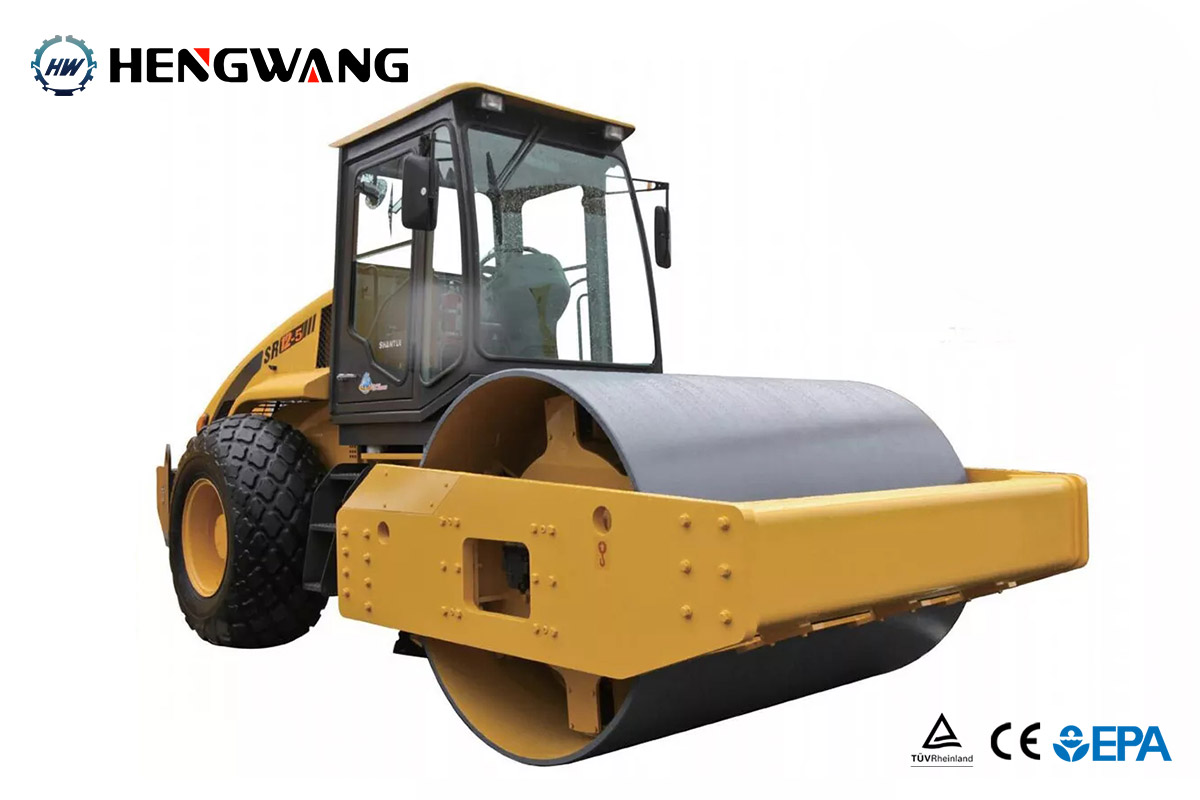

This robust single-drum roller is specifically designed for compacting intermediate layers.
It is equipped with a Dana drive system and a hydraulic clutch actuating system that enables clutch disengagement. The roller is powered by a reliable Weichai Deutz (WP6G140E22) engine.
Parameter name | HW12-5 |
Operating weight (Kg) | 12000 |
Exciting force (KN) | 290/200 |
Vibration frequency (Hz) | 30/35 |
Nominal amplitude (mm) | 2/1.0 |
Gradeability (%) | 48 |
Engine model | WP6G140E22 |
Rated power/rated speed (kW/rpm) | 105/2200 |
Overall dimensions of machine (mm) | 5934*2275*3214 |
Forward speed (km/h) | F1:0-5.3,F2:0-9.9 |
Reversing speed (km/h) | R1:0-5.3,R2:0-9.9 |
Fuel tank (L) | 230 |
Compacting width (mm) | 2130 |
