● The modular design is adopted to achieve easy assembling and disassembling and simple repairs.
● The Weichai WP12 engine conforms to the China-II non-road machinery emission regulation, featuring strong power, low fuel consumption, high intelligence and efficiency, high parts universality, and low maintenance cost.
● The modular units adopt cushioned installation to isolate the vibration and transmission and promote the machine reliability and life.
● The normally-closed brake system is adopted to apply the braking whenever the engine is stopped, featuring high safety.
● The four-point semi-suspension shock-absorbing installation reduces the machine vibration and improves the driving comfort.
● The normally-closed brake design is applied so that the machine is braked automatically after the stop of engine to ensure high safety.
● The shock absorbers in crossing shaft rubber block structure are applied to effectively mitigate the vibration from the engine and protect the engine and drive system.
● The integral ergonomic hexahedral cab features large space, excellent vision, and good airtightness.
● The single accelerator pedal features comfortable operations.
● The extensively adjustable seat and armrests provide the driver with the most comfortable operation；
● The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to realize low vibrating noise.
● The optional A/C and heating system, the intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, toolbox, and fire extinguisher are installed to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.
● The safety passage system of the machine guarantees the driver’s safety.
● The undercarriage system features long ground length, high ground clearance, stable driving, and excellent trafficability.
● Depending on specific working condition, the semi-U blade, straight tilting blade, angle blade, three-shank ripper, traction frame, and winch can be installed to achieve power operating capability.
● The standard LED working lamps improve the illumination capability and achieve higher safety and reliability during nighttime operations.
● The structural parts inherit the excellent quality of homemade mature products.
● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability；
● The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.

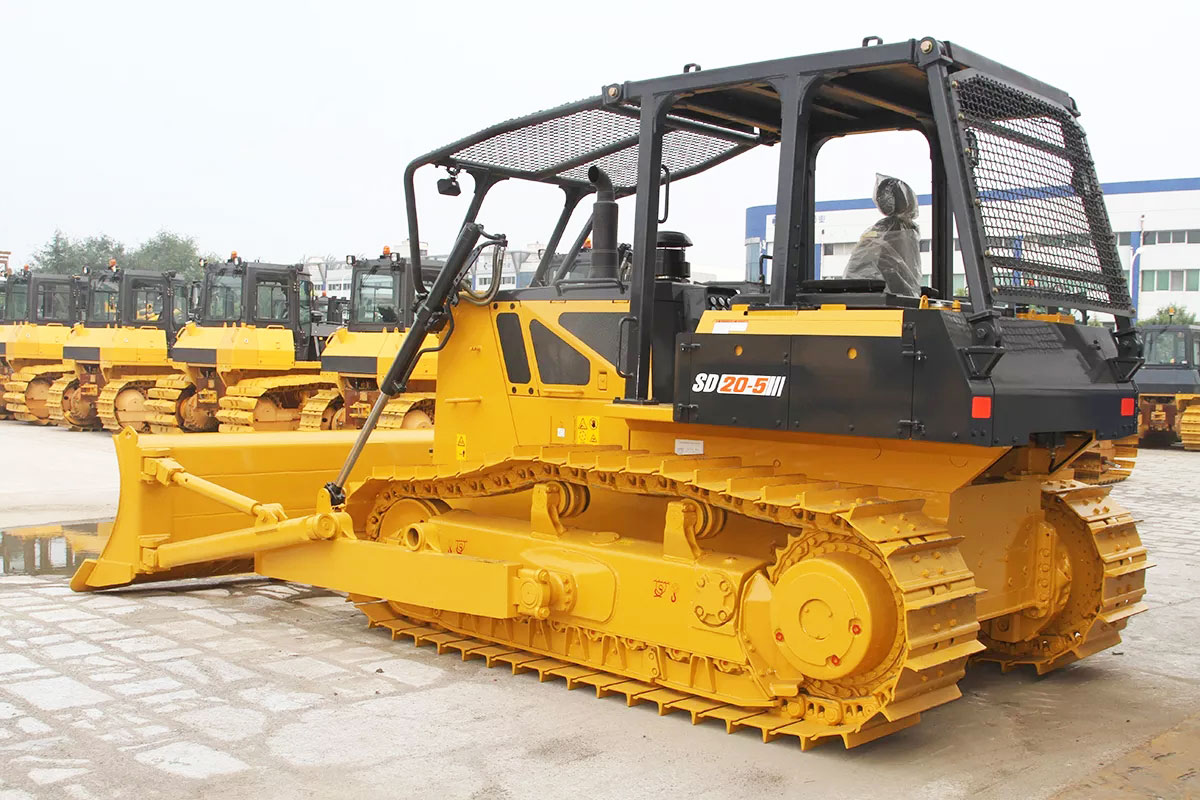

SD20-B5 (China-II) (Standard version)

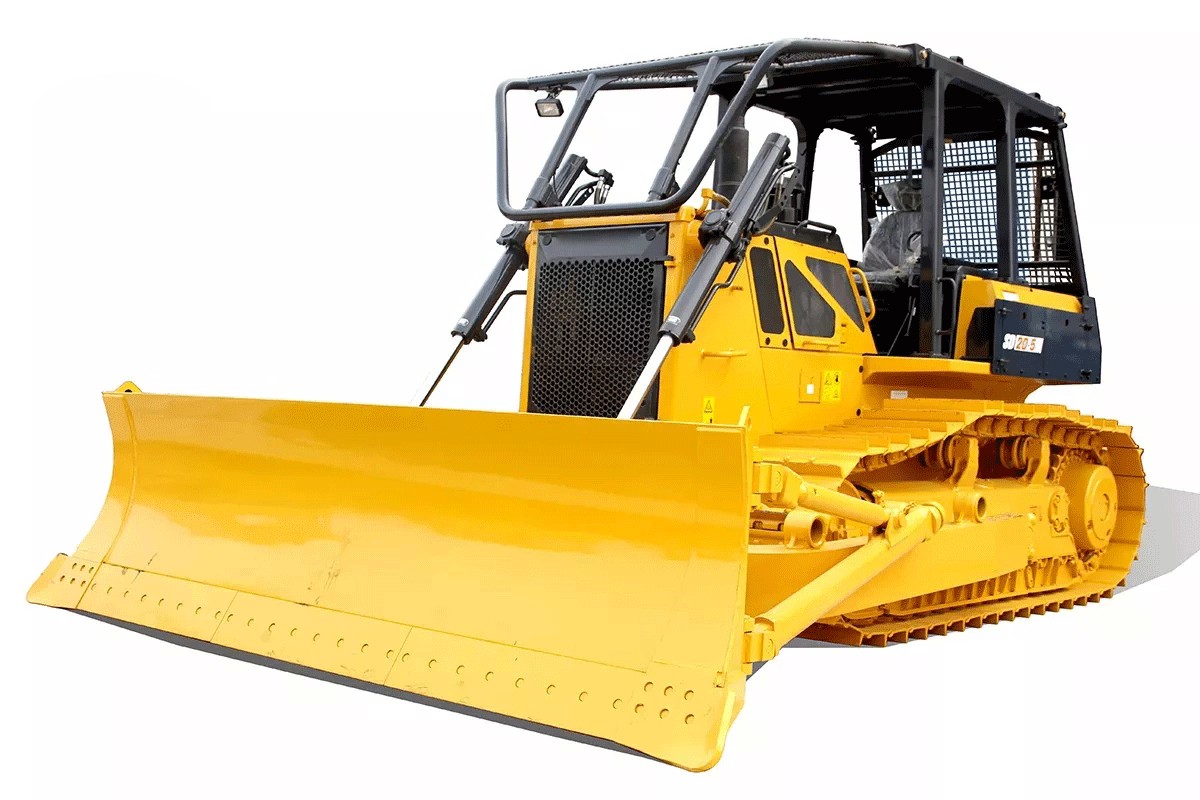

SD20-B5 FL (China-II) (Forestry version)
Operating weight (Kg)
Ground pressure (kPa)
Rated power/rated speed (kW/rpm)
Overall dimensions of machine (mm)
Forward speed (km/h)
Reversing speed (km/h)
Center distance of track (mm)
Width of track shoes (mm)
Ground length (mm)
Fuel tank (L)
Digging depth (mm)
Ripping depth (mm)
