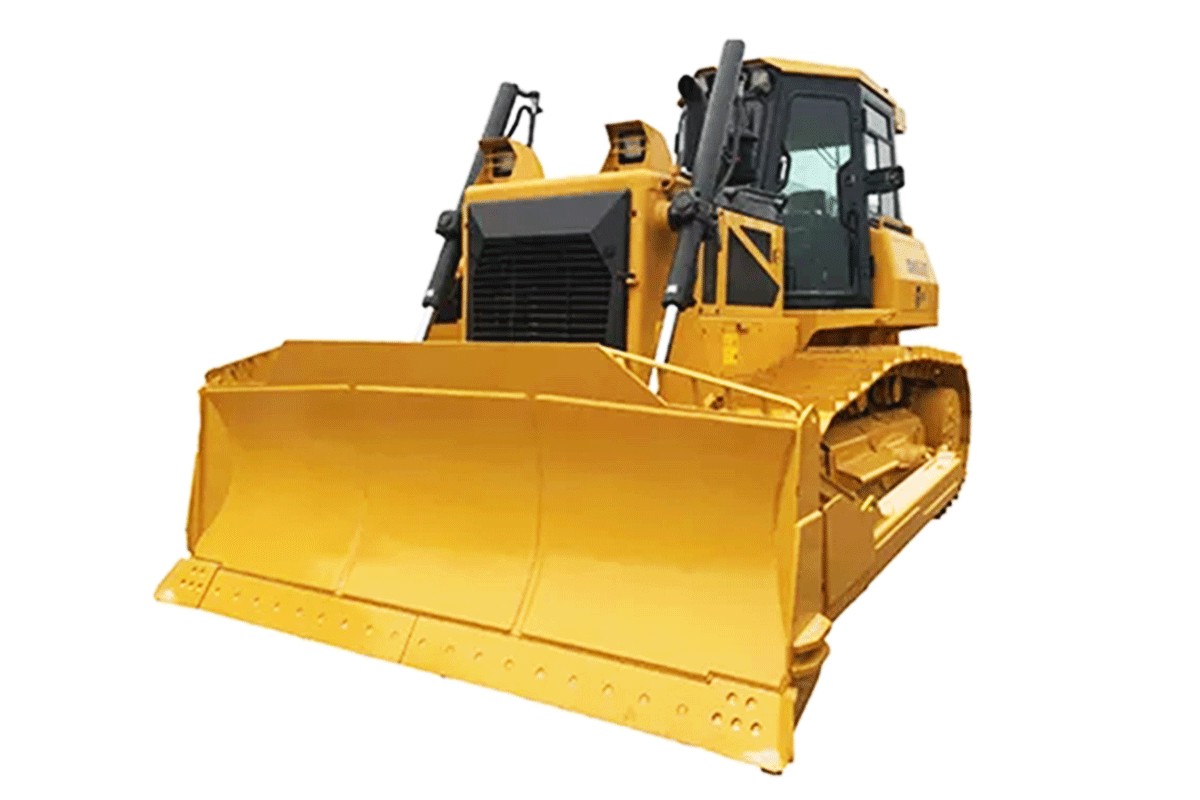

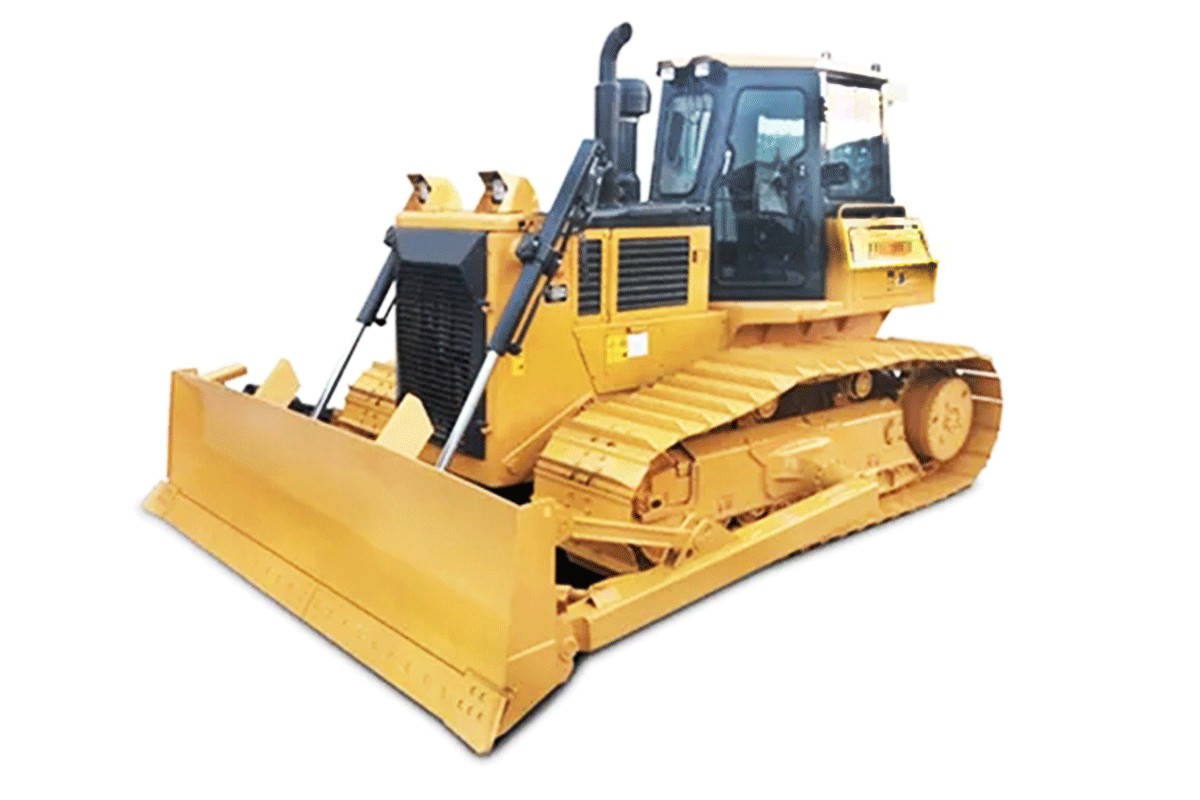

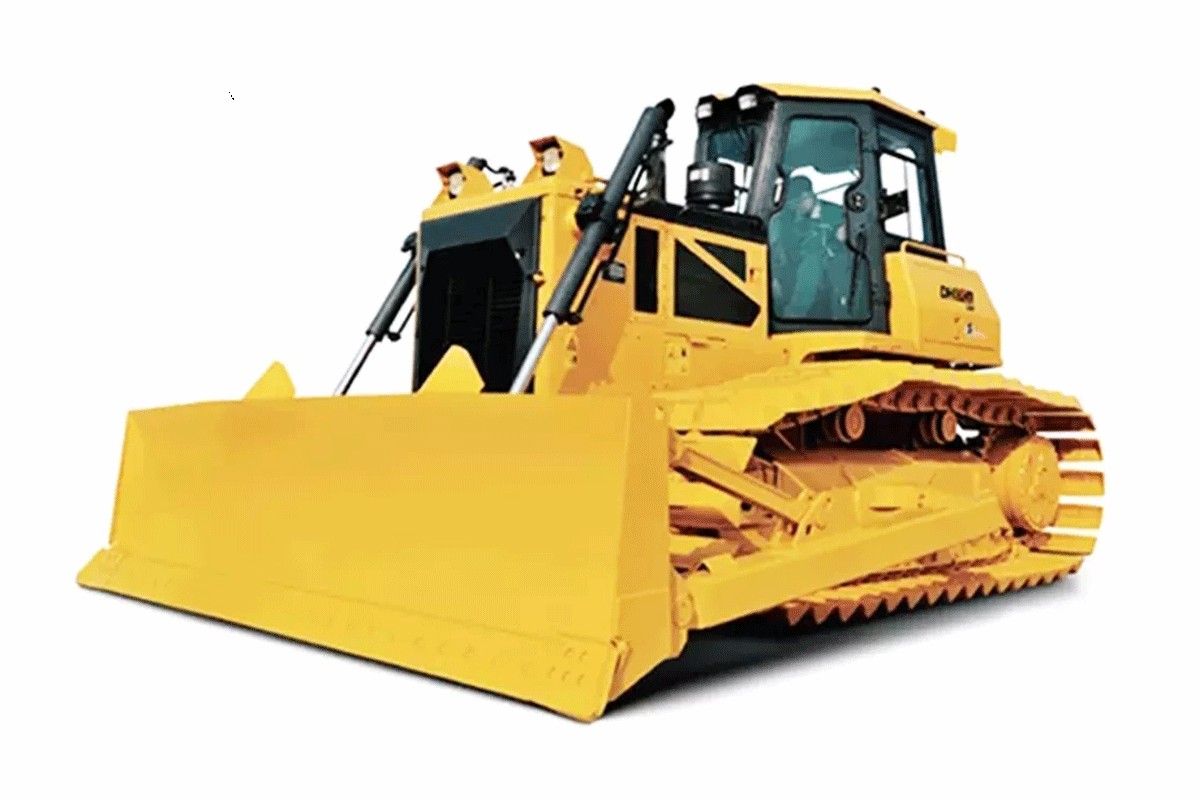

DH17-C2 BULLDOZER

Factory Direct
Training on Arrival
One-year warranty
Operating Weight: 18340kg
Rated Power: 162kW
Engine Model: WP10
Product Detail

CHARACTERISTIC

Power System
● The electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts universality, and low maintenance cost.
● The machine is provided with three working power modes at your choice depending on the specific load need under actual working condition to realize the reasonable match among power, efficiency, and power consumption. The unique one-touch boost mode can be used for escape from mud entrapment.


Drive system
● The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.
● The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. Depending on the specific working condition, the semi-U blade, straight tilting blade, environmental sanitation blade, and ripper can be installed to achieve high operating capability. The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability.


Driving/Riding Environment
The integral ergonomic hexahedral cab features large space, excellent vision, and good airtightness.
● The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
● The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
● The integrally sealed shock-absorbing system of the cab features low vibrating noise and lowers the driver’s parotic noise to 85dB.
● The standard A/C and heating system, the intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, sun shade, and fire extinguisher are installed to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.
● The safety passage system of the machine guarantees the driver’s safety.



Control system
● The traveling is operated by single electronic control joystick and the working device is operated by single pilot joystick, featuring flexible, handy, and comfortable operations.


Electric system
● The structural parts inherit the excellent quality of the mature products.
● The electric harnesses adopt Leoni products and use seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
● The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.

Parameter nameDH17-C2 XL (Extended version)DH17-C2 LGP (Super-wetland version)DH17-C2 WH (Environmental sanitation version)DH17-C2 DS (Desert version)DH17-C2 RS (Rock version)DH17-C2 FL (Forestry version)DH17-C2 CH (Coal version)
Performance parameters
Operating weight (Kg)18340 (With traction frame)/19241 (With ripper)2020020140206001917619985 (With traction frame)/21725 (With winch)18700
Ground pressure (kPa)67.231.231.143.358.7555.5 (With traction frame)/60.7 (With winch)57.3
Engine
Engine modelWP10WP10WP10WP10WP10WP10WP10
Rated power/rated speed (kW/rpm)162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)162/1900 (Heavy-duty mode) 141/1820 (Standard mode) 120/1750 (Light-duty mode)
Overall dimensions
Overall dimensions of machine (mm)5250*3420*30805340*4150*30915586*4150*30915340*4150*30915250*3420*30806320*3438*32105250*3420*3080
Driving performance
Forward speed (km/h)0~100~100~100~100~100~100~10
Reversing speed (km/h)0~100~100~100~100~100~100~10
Chassis System
Center distance of track (mm)1880235023502350188018801880
Width of track shoes (mm)510/560/6101100/950 (Swamp type)/900 (Single grouser)1100/950 (Swamp type)810 (Single grouser)/1100/950 (Swamp type)610610610/510/560
Ground length (mm)2675293529352935267529352675
Tank capacity
Fuel tank (L)305305305305305305305
Working device
Blade typeSemi-U blade/straight tilting bladeStraight tilting bladeSanitation bladeStraight tilting bladeRock bladeAngle BladeCoal blade
Digging depth (mm)520485485485520485520
Ripper typeThree-shank————————————
Ripping depth (mm)475————————————
