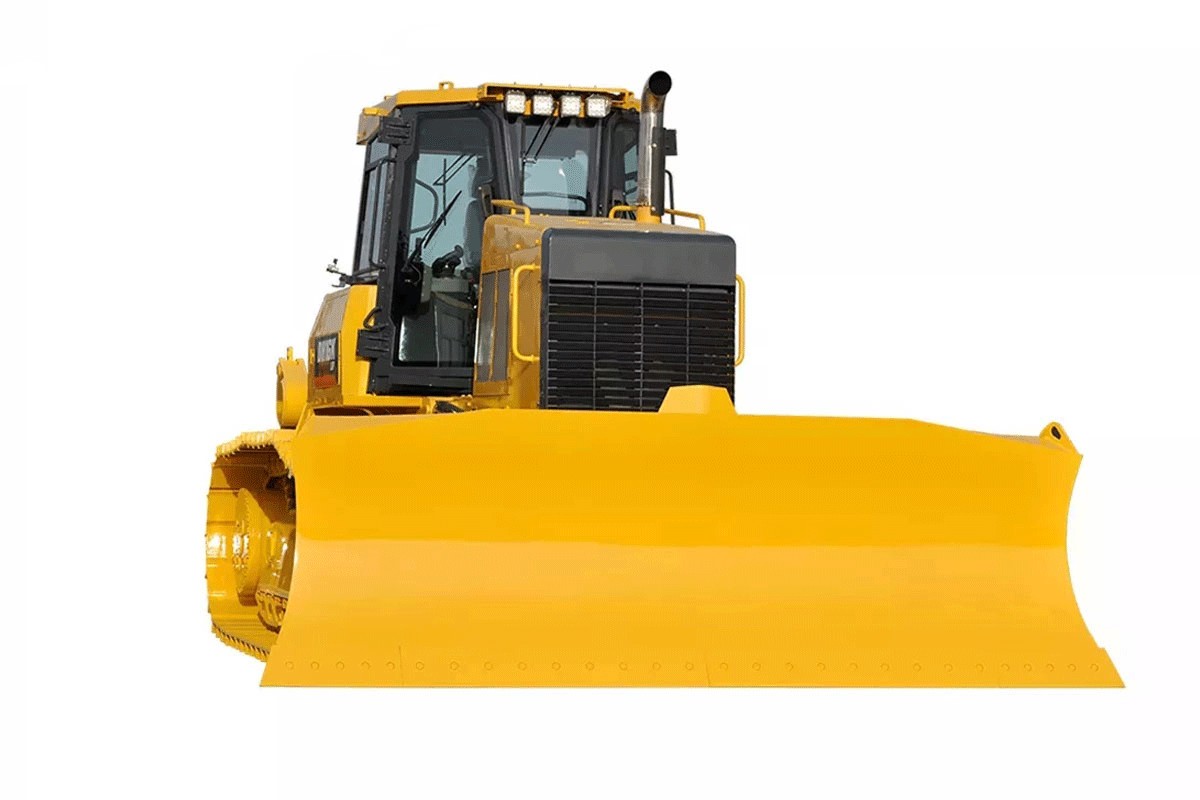

DH16-K2 BULLDOZER

Factory Direct
Training on Arrival
One-year warranty
Operating Weight: 17635kg/18800kg
Rated Power: 142kW
Engine Model: N67
Product Detail

CHARACTERISTIC

Power System
● The installed N67 electronic control engine conforms to the EPA Tier4 final/EU Stage Ⅳ emission regulation, featuring stronger power and higher energy-saving and environmental-friendliness. The after-treatment system adopts HI-eSCR technology, requiring no external EGR. The 600h oil maintenance interval reduces the maintenance costs.
● The self-made innovative hydrostatic drive optimization technology is applied to achieve higher efficiency and energy-saving. The multiple operating modes are at the user’s choice depending on the load of actual working condition to realize the reasonable match among power, efficiency, and energy consumption.
Standard mode - It can provide strong power performance and excellent operating control performance for the operator.
Power mode - It can provide stronger power performance to meet your higher needs for heavy-load condition.


Control system
● The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.
● The multiple functions, including multiple steering modes, hydraulic oil low temperature control, automatic low idling, fan reversing, and seat safety switch, are provided to achieve higher intelligence, higher efficiency, and higher safety of the machine.
● The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.
● The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.
● The GPS automatic leveling systems, including Trimble, Topcon, Leica, and Moba, can be installed to meet the user needs under precision leveling condition and improve the efficiency.


Driving/Riding Environment
● The standard A/C and heating system, the intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, and fire extinguisher are installed to provide more abundant personalized driving/riding experience.
● The integrated large color LCD display and control terminal integrates the instruments to ensure easy and simple understanding, the multiple languages are provided for you to understand the system status at any time, and the multiple mode settings are provided, featuring high intelligence and convenience.
● The optional reversing camera system can display the vision behind the vehicle to ensure the reversing safety.
● The safety passageway system and the reasonably arranged safety handrails and anti-skid footplates for whole vehicle guarantee the driver’s safety.




Working adaptability
● The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.
● The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. Depending on the specific working condition, the environmental sanitation blade, ripper, and winch can be installed to achieve high operating capability. The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability.


Operating performance
● The traveling is operated by single electronic control joystick and the working device is operated by single pilot joystick, featuring flexible, handy, and comfortable operations.


Easy maintenances
● The structural parts inherit the excellent quality of the mature products.
● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
● The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.

Parameter name

DH16-K2 XL (Extended version)

DH16-K2 LGP (Super-wetland version)

Performance parameters

Operating weight (Kg)

17635kg/38879lb (With traction frame)

18800kg/41447lb (With traction frame)

Ground pressure (kPa)

50 (With 560mm track shoes)/45.9 (With 610mm track shoes)

36.9

Engine

Engine model

N67

N67

Rated power/rated speed (kW/rpm)

142/2100

142/2100

Overall dimensions

Overall dimensions of machine (mm)

5800*3400*3180

5800*4011*3180

Driving performance

Forward speed (km/h)

0-10

0-10

Reversing speed (km/h)

0-10

0-10

Chassis System

Center distance of track (mm)

2040

2350

Width of track shoes (mm)

560/610

810

Ground length (mm)

3075

3075

Tank capacity

Fuel tank (L)

389

389

Working device

Blade type

PAT

PAT

Digging depth (mm)

675

675

Ripper type

Three-tooth ripper

Three-tooth ripper

Ripping depth (mm)

492

492
