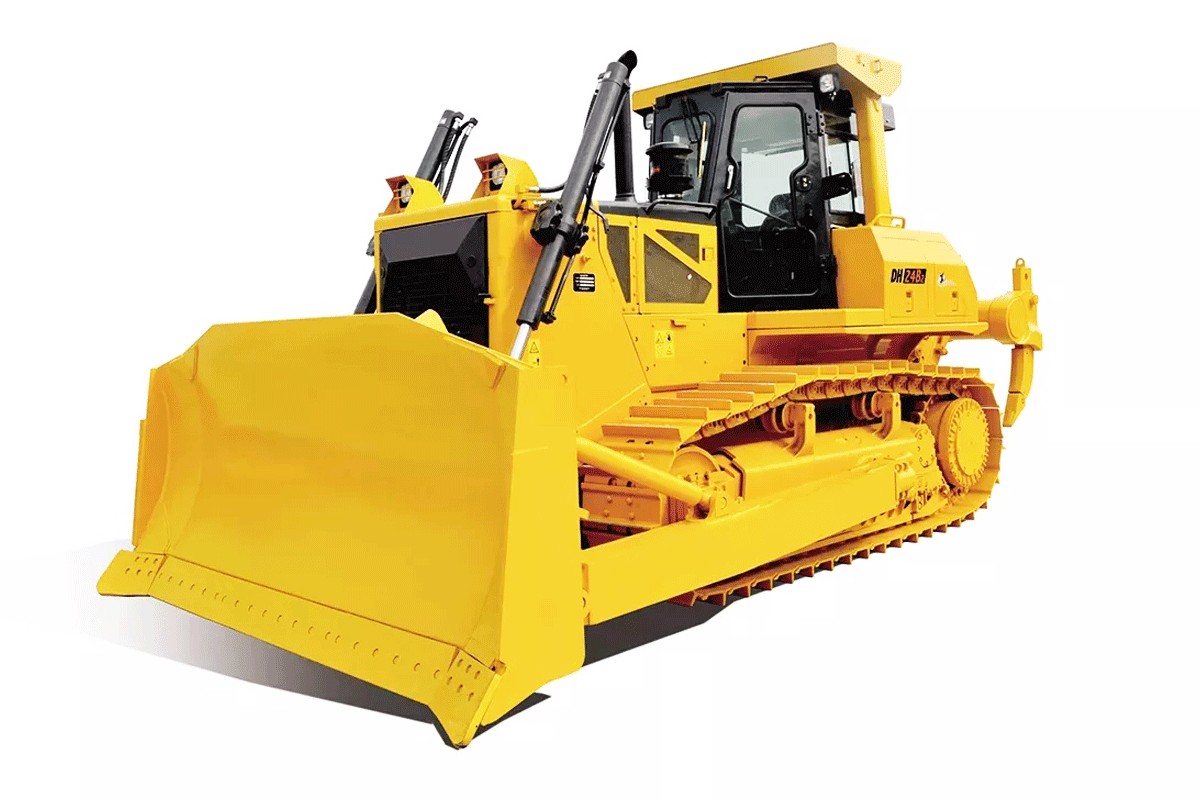

Parameter name | HWDH24-B2 XL | HWDH24-B2 LGP |
Performance parameters | ||
Operating weight (Kg) | 23850 | 26450 |
Ground pressure (kPa) | 68.4 | 40.9 |
Engine | ||
Engine model | Weichai WD12G250E202 | Weichai WD12G250E202 |
Rated power/rated speed (kW/rpm) | 185/1900 | 185/1900 |
Overall dimensions | ||
Overall dimensions of machine (mm) | 6095*3640*3192 | 6255*4365*3228 |
Driving performance | ||
Forward speed (km/h) | 0-11 | 0-11 |
Reversing speed (km/h) | 0-11 | 0-11 |
Chassis System | ||
Center distance of track (mm) | ||
Width of track shoes (mm) | 560/610 (Optional)/660 (Optional) | 910 |
Ground length (mm) | 3050 | 3482 |
Power System
● The Weichai mechanical engine complies with the China-II non-road machinery emission regulations, offering advanced intelligence and efficiency. It is characterized by a simple structure, high interchangeability of parts, and low maintenance costs.
● The intelligent matching technology ensures optimal working efficiency and fuel economy, resulting in a reduction of composite fuel consumption by 10~15%. This technology achieves the best balance between performance and fuel efficiency.
