HWR3510 Telescopic handler

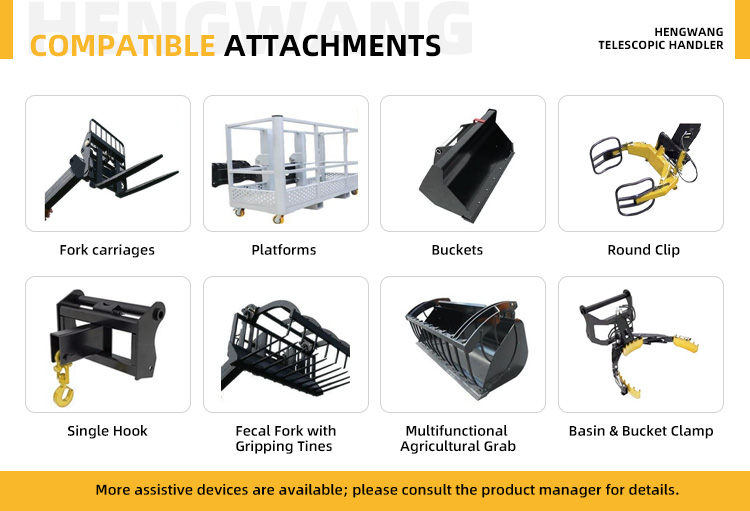

Telehandlers will take your material handling productivity to new heights. Telehandlers offer the extended reach and superior lift capacity of a heavy-duty telescoping boom combined with a range of attachments. It will quickly become your go-to machine for farming and ranching applications, construction, landscaping, snow removal, and much more.


Telehandlers are designed durable – and built to last – with a combination of tough construction, high-quality materials and features that maximize reliability. Look to the rigid frame, sealed engine compartment and side-by-side cooling design and know it’s ready for the most severe conditions.

ModelHWR3510
EngineYuchai engine
Power77.3KW
Emission StandardNational II emission standard
Overall Weight9500kg
Rated Load3.5 t
Maximum Lifting Height10 m
Overall Dimensions (L*W*H) (mm)5800x2200x2550mm
Hydraulic Oil Capacity170L
Fuel Tank Capacity195L
Telescopic BoomThree-section engine
Telescopic Boom MaterialBS1000 high-strength manganese steel plate
Towing Fork1220mm sliding forklift
Maximum Travel Speed35 km/h
Hydraulic Operating SystemElectro-hydraulic load-sensitive proportional system

With their compact size, lift capacity, maneuverability and attachment versatility, there’s little that telehandlers can’t do. Adding one to your fleet can help you take your business to new heights.
