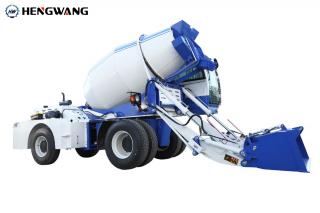

HWJB120 Concrete Mixer Truck
HWJB120 Concrete Mixer Truck
HWJB120 Concrete Mixer Truck
HWJB120 Concrete Mixer Truck
HWJB120 Concrete Mixer Truck
HWJB120 Concrete Mixer Truck
HWJB120 Concrete Mixer Truck
HWJB120 Concrete Mixer Truck
Mixing Capacity: 1.2m3
Rated Power: 58Kw
Machine Weight: 4580Kg
Watch Product Video
  • product details
  • Technical Parameters

HWJB120 Concrete Mixer Truck Production Characteristic

  • Italy Leading Design,Automatic Feeding Mixing System

  • Simple And Convenient Operation

  • High Efficiency Output,Save Time And Labor,Save Cost

  • The Perfect Combination Of Mixing Truck And Loading Car

Specifications

Unit

Parameter

Model

/

HWJB120

Actual mixing capacity

1.2

Rotary drum capacity

1.4

Degree of bias

°

16

Rotational speed

r/min

0-14

Direction of rotation


Feed:clockwise output:counter clockwise

Mixing drum blade


Two sets of spiral blades and four sets of auxiliary blades

Slump of concrete

mm

70-260

Hydraulic Power Transmission System

Pump model


CBGV-4025

Hydraulic motor model


BMSS-250

Reducer ratio


01:10

Water Supply

Tank capacity/ water supply form

L

540/ automatic timing water supply mechanism with automatic timing

The main performance parameters of the chassis and the engine

Engine type / displacement

L

CF4B68G-Z-13B2/CF4C100T-Z-13B2

model


Straight injection type four stroke water cooled supercharged diesel engine

Rated power

kw/r/min

58KW/2400

Max torque

N.m/r/min

255/1500-1800 380/1500-1800

Max running speed

km/h

24

Min steering radius

mm

5000

Climbing capacity

%

26

Tire


23.5/70-16

Driving way


4×4

Weight

kg

4580

Maximum load capacity

kg

2800

Whole machinery weight

kg

7380

Overall size(L*W*H)

mm

6100*1850*3000
