Loader Bucket Capacity: 0.8m3
Digging Bucket Capacity: 0.2m3
Digging Force: 28KN
Watch Product Video
  • product details
  • Technical Parameters

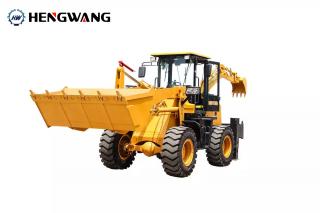

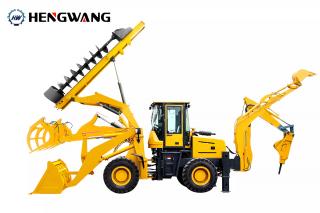

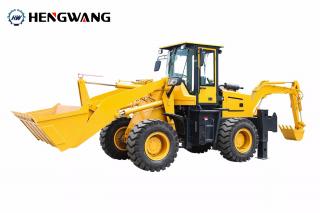

HW15-26 Backhoe Loader

  • HW15-26 articulated small backhoe wheel loaders with rated load 1.6ton and 2.5ton has the feature of higher efficiency,lower fuel consumption and easy operating.New design for cabin and structure adopted and looks more attractive.CE certificate approved and some types can reach Euro III emission standard.It can be widely used in building field works,highway and railway construction and urban construction works etc.

Model


HW15-26

Dimension


Engine

1

Dimension(mm)

5800*1850*2750

1

Model

YN27GBZ

2

Wheelbase(mm)

2315

2

Type

Turbocharged, 4 stroke

3

Wheel-track(mm)

1500

3

Rated Power(KW)

55

4

Min. Ground Clearance(mm)

220

4

Rated speed(r/min)

2400

Performance Parameter

5

cylinders-inner diameter

4-90

1

System Pressure(MPa)

16

Transmission system

2

Machine Weight(Kg)

4800

1

Gearbox

Fixed shaft power shift

3

Speed(Km/h)

26

2

Gear

Front: 2; Rear:2

4

Gradeability(°)

25

3

Torque converter

ZL29A

5

Min.Turning Radius(mm)

4000

Steering System

Digging Performance

1

Mode

Articulated full hydraulic steering

1

Max.digging depth(mm)

2700

2

Steering angle(°)

33

2

Digging unloading height(mm)

2200

Bridge

3

Max.digging Radius(mm)

4600

1

Mode

Wheel

4

Digging Bucket Width(mm)

600

Tire

5

Digging Bucket Capacity(m³)

0.2

1

Format

23.5-16

6

Max.Digging Height(mm)

4200

2

Front wheel air pressure(KPa)

250

7

Max.Digging Force(KN)

28

3

Rear wheel pressure(KPa)

250

8

Bucket Swing Angle(°)

180

4

Service brake

Air cap oil caliper disc brake

Loading Performance

5

Parking brake

Manual

1

Max.Unloading Height(mm)

3300

Oil

2

Max.(Unloading distance mm)

850

1

Fuel tank(L)

40

3

Loader bucket width(mm)

1900

2

Hydraulic tank(L)

40

4

Loader Bucket Capacity(m³)

0.8

Other

5

Max.Load Lifting Height(mm)

4200

1

Drive type

4WD

6

Max.Loading Force(KN)

36

2

Variable speed

Hydraulic transmission

7

Bucket Moving Time(S)

12

3

Braking distance(mm)

4500
