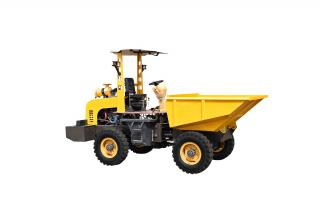

HW-FCY30 Site Dumper
HW-FCY30 Site Dumper
HW-FCY30 Site Dumper
HW-FCY30 Site Dumper
Loading Capacity: 3000Kg
Bucket Capacity: 1.5CBM
Rated Power: 38Kw
Watch Product Video
  • product details
  • Technical Parameters

HW-FCY30 Site Dumper

  • The wheel site dumper is wildly used in short-distance transport of bulk material, such as the construction industry, the building site, battlefield, protecting road section, the municipal engineering, underground mines and so on.

Features:

  • 1. 4 *4 Drive, Hydraulic steering, can unload materials smoothly by strong hydraulic pressure unloading system.
  • 2. Low walking speed, short-distance transport of bulk materials.
  • 3. Easy operation, small turning radius can be used in a narrow site.
  • 4. With self lading bucket can realize the multifunction tools.
  • 5. Engine as optional makes the performance more reliable
  • 6. Off road wider tyres as optional can work in muddy and bumpy roads.
  • 7. Bucket 180°rotating as optional can realize side dumping and dumping in each direction, which can get higher working efficiency.

Model

HW-FCY30

rated loading capacity

3000kg

Rated bucket capacity

1.5m³

Weight

2200kg

Engine model

490

Power

38kw

Tire

1490-16

minimum turning radius

4600mm

Transmission form

mechanical

Size

4900*1700*2600mm

Feedback form contact with us
Related Product

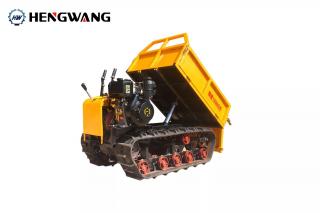

HW1000L Crawler Dumper
HW1000L Crawler Dumper
Shandong Hengwang Group Co., Ltd. is one of the toppest HW1000L Crawler Dumper in China.During these...
Learn More

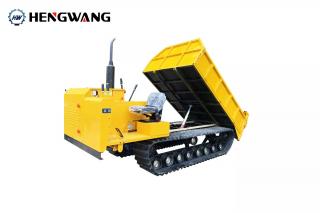

HW2000L Crawler Dumper
HW2000L Crawler Dumper
Quality HW2000L Crawler Dumper manufacturers & exporter - buy HW2000L Crawler Dumper from China ...
Learn More

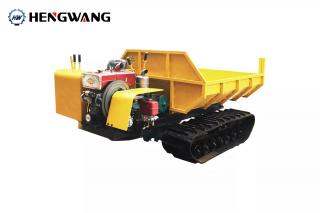

HW3000L Crawler Dumper
