HWJB320 Concrete Mixer Truck
HWJB320 Concrete Mixer Truck
HWJB320 Concrete Mixer Truck
HWJB320 Concrete Mixer Truck
Mixing Capacity: 3.2m3
Rated Power: 85Kw
Machine Weight: 7500Kg
  • product details
  • Technical Parameters

HWJB320 Concrete Mixer Truck Production Characteristic

  • Italy Leading Design,Automatic Feeding Mixing System

  • Simple And Convenient Operation

  • High Efficiency Output,Save Time And Labor,Save Cost

  • The Perfect Combination Of Mixing Truck And Loading Car

  • 180 Degrees With A Rotary Stirring Tank,Two-Way Unloading

Specifications

Unit

Parameter

Model

/

HWJB320

Actual stirring capacity

3.2

Rotary drum capacity

3.4

Degree of bias

°

16

Rotational speed

r/min

10-20

Direction of rotation


Feed:clockwise output:counter clockwise

Mixing drum blade


Two sets of spiral blades and four sets of auxiliary blades

Slump of concrete

mm

70-260

Hydraulic Power Transmission System

Pump model


CBGV-4025

Hydraulic motor model


BM5-400

Reducer ratio


01:24

Water Supply

Tank capacity/ water supply form

L

540/ automatic timing water supply mechanism with automatic timing

The main performance parameters of the chassis and the main performance parameters of the engine

Engine type / displacement

L

CF4C100T-Z-13B2

model


Straight injection type four stroke water cooled supercharged diesel engine

Rated power

kw/r/min

85KW/2400

Max torque

N.m/r/min

380/1500-1800

Max running speed

km/h

24

Min steering radius

mm

4500

Climbing capacity

%

26

Tire


16/70-20

Driving way


4×4

Weight

kg

7500

Maximum load capacity

kg

7800

Whole machinery weight

kg

15300

Overall size(L*W*H)

mm

6650*2600*3200

The wheelbase

mm

3000

Bucket capacity

0.6

Feedback form contact with us
Related Product

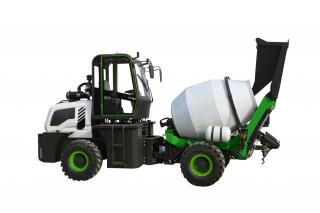

HWJB200 Concrete Mixer Truck
HWJB200 Concrete Mixer Truck
Shandong Hengwang Group Co., Ltd. is one of the toppest self loading concrete mixer truck,HWJB200 Co...
Learn More

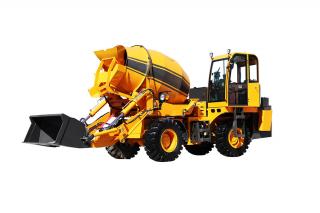

HWJB120 Concrete Mixer Truck
HWJB120 Concrete Mixer Truck
Quality HWJB120 Concrete Mixer Truck manufacturers & exporter - buy HWJB120 Concrete Mixer Truck...
Learn More

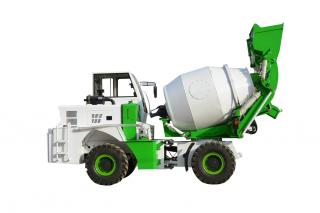

HWJB240 Concrete Mixer Truck
