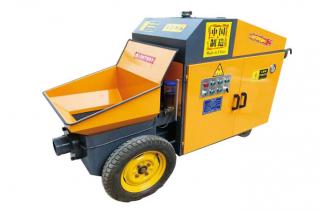

HW30-30 Concrete Pump
HW30-30 Concrete Pump
HW30-30 Concrete Pump
HW30-30 Concrete Pump
Rated Power: 30Kw
Aggregate size: 30mm
Output: 15m3/h
  • product details
  • Technical Parameters

HW30-30 Concrete Pump

  • 1. three in one mixing pump transport, convenient and quick transfer.

  • 2. High construction efficiency; Continuous pumping of field agitator, siring with traditional mixer Compared with mixing and manual feeding, the efficiency is increased by more than 5 times.

  • 3. Labor saving and cost reduction. The stirring pump is operated by one person.High automation Compared with the mixer, manual feeding method can save 4--5 labor, and labor intensity is reduced greatly.

  • 4. small area, easy to move very suitable for rural and narrow area construction.

  • 5. The concrete produced is of good quality, The concrete passes through two stirs and piping delivery .More uniform after transport, good compactness, high strength,anti - permeability anti - folding performance are better.

Model

HW30-30

Power

30kw

Voltage

380V

Vertical delivery distance

40m

Horizontal delivery distance

80m

Output

15m3/h

Max.Aggregate size

30mm

Outlet diameter

150mm

Cylinder stroke

850mm

Pipe diameter

125mm

Dimension

3100*1500*1600mm

Weight

1200kg
