HW20-22 Concrete Pump
HW20-22 Concrete Pump
HW20-22 Concrete Pump
HW20-22 Concrete Pump
HW20-22 Concrete Pump
Rated Power: 22Kw
Aggregate size: 20mm
Output: 12m3/h
Watch Product Video
  • product details
  • Technical Parameters

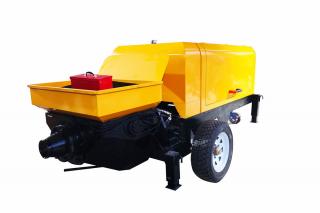

HW20-22 Concrete Pump

  • 1. Advanced s-tube valve is adopted to meet the delivery of concrete;

  • 2. The glasses plate and cutting ing are made of high hardness and wear resisting allay material, with longer service life;

  • 3. Import main oil pump with high output pressure can meet high-rise buildings and distance transportation requirements

  • 4.The hydraulic oil is cooled by air cooling system, which has good cooling effect and is easy to use;

  • 5. With reverse pump function, in the case of poor concrete collapse, maximum reduce pipe clogging:

  • 6. Equipped with centralized lubrication system, lubricating oil is distributed to all parts to ensure rotation service life of moving parts:

  • 7. The electric box use mitsubishi brand electric components,equipped with wireless remote control handle. working stable and easy to operate.

Model

HW20-22

Power

22kw

Voltage

380V

Vertical delivery distance

50m

Horizontal delivery distance

80m

Output

12m3/h

Max.Aggregate size

20mm

Outlet diameter

120mm

Cylinder stroke

650mm

Pipe diameter

100mm

Dimension

2100*780*1200mm

Weight

900kg
