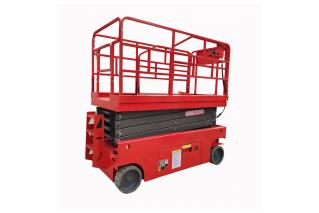

HW0.3-12 Aerial Work Platform
HW0.3-12 Aerial Work Platform
HW0.3-12 Aerial Work Platform
HW0.3-12 Aerial Work Platform
Working load: 320Kg
Working height: 14m
Platform height: 12m
  • product details
  • Technical Parameters

HW0.3-12 Aerial Work Platform

  • The aerial work platform makes many difficult and dangerous tasks easier, such as indoor and outdoor cleaning (ceilings, curtain walls, glazing, eaves, awnings, chimneys, etc.), billboard installation and maintenance, street lights And the installation and maintenance of traffic signs. This high-altitude lifting platform is characterized by its small size, flexibility and convenience. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, you can save your expenses and valuable time.

The aerial work platform has the following features:

  • 1.Safety certification Compliance with European certification All machines are covered by insurance.

  • 2.HWZG0.3-12 scissor self-propelled aerial work platform with automatic walking function, able to walk quickly and slowly under different working conditions..Only one person can operate the machine to complete the lifting, advancing, retreating, steering and other actions in the aerial work operation, which greatly improves the working efficiency compared with the traditional hydraulic platform.Reduce the number of operators and labor intensity.It is especially suitable for a wide range of high-altitude continuous operations such as airport terminals, stations, terminals, shopping malls, stadiums, residential properties, factories and mines.

Model

HW0.3-12

Safe working load

320kg

Safe working load of extension platform

113kg

Maximum number of staff

2

Maximum working height

14m

Maximum platform height

12m

The whole machine length

2600mm

The whole machine width

1170mm

The whole machine height ( Unfolded fence )

2640mm

The whole machine height (fence folding )

1940mm

Working platform size ( length * width )

2400mm*1170mm

Platform extension size

0.85m

Minimum ground clearance ( Collapsed state )

0.7m

Minimum ground clearance ( Lifting state )

0.019m

Wheelbase

1.89m

Minimum turning radius (Inside wheel )

0

Minimum turning radius ( Outside wheel)

2.20m

Lifting motor / Drive motor

24v/4.0kw

Machine speed ( Collapsed state )

3.5km/h

Machine speed ( Lifting state )

0.8km/h

Rate of rise/fall

80/90 sec

battery

6V/250Ah

charger

24v/25A

Maximum climbing ability

25%

Maximum permissible working Angle ( Indoor/outdoor)

2°/3°

tire

φ381*127

Machine weight

2800kg
